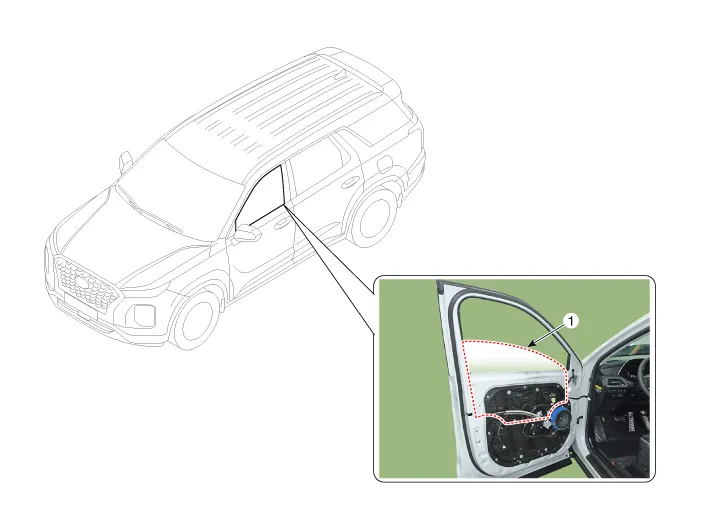

1. Front door window glass

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.

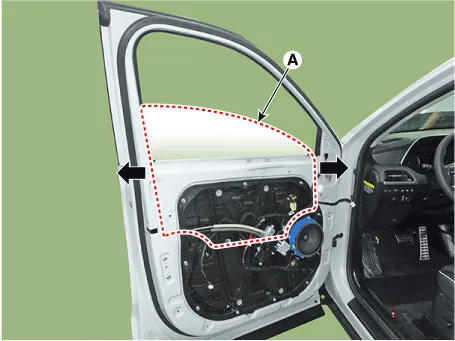

Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

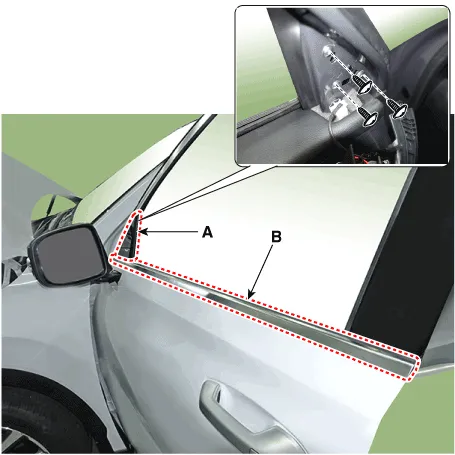

Loosen the mounting screws and remove the front door side garnish (A) and remove the front door belt outside weatherstrip (B).

Hyundai Palisade. Repair procedures
3.
Remove the front door belt inside weatherstrip (A).

Hyundai Palisade. Repair procedures
4.
Remove the plug hole (A).

Hyundai Palisade. Repair procedures
5.

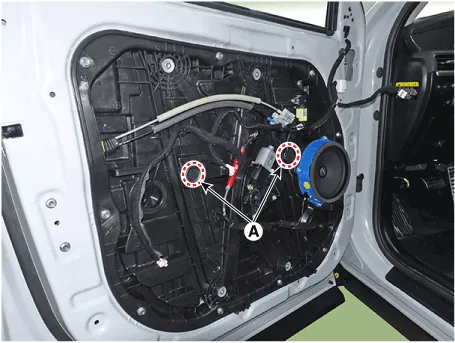

By operating the power window switch, pull down until the glass mounting bolt on plug hole is visible.
Hyundai Palisade. Repair procedures
•
Be careful not to damage the galss surface.
6.
Loosen the mounting bolt and then pull out the front door window glass (A) by tilting it sideways.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Hyundai Palisade. Repair procedures
7.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Roll the glass up and down to see if it moves freely.
•
Adjust glass position as needed.
•
Make sure the door lock and opens properly.
