Hyundai Palisade (LX2): Front Door / Front Door Inside Handle

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle

Repair procedures

Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

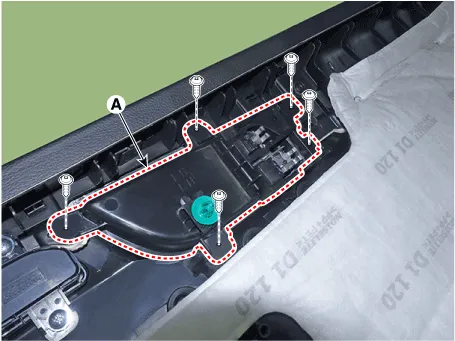

Loosen the mounting screws and remove the front door inside handle (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
