Hyundai Palisade (LX2): Front Door / Front Door Module

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Module

Components and components location

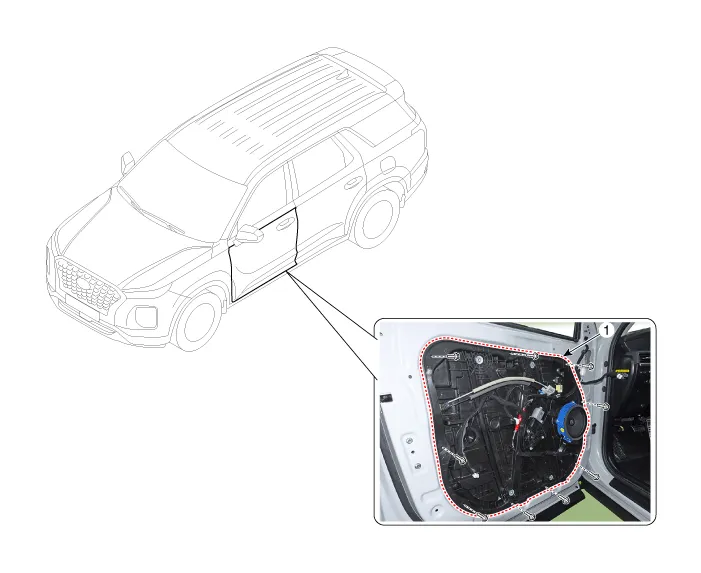

Component Location

Hyundai Palisade. Components and components location

1. Front door module

Repair procedures

Replacement
Hyundai Palisade. Repair procedures
•
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Be careful not to scratch the door trim and other parts.
1.
Remove the front door window glass.
(Refer to Front Door - "Front Door Window Glass")
2.
Remove the front door outside handle.
(Refer to Front Door - "Front Door Outside Handle")
3.

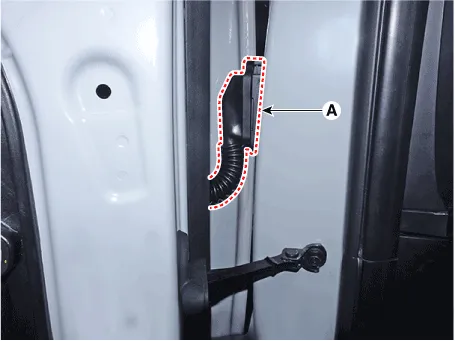

Press the lock pin and separate the front door main connector (A).

Hyundai Palisade. Repair procedures
4.

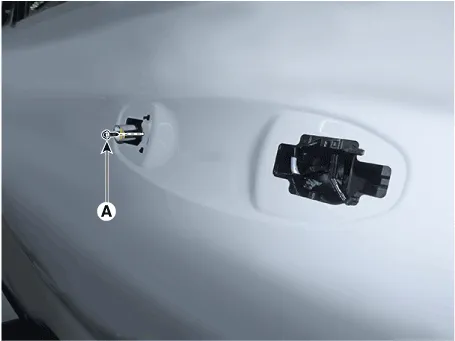

Loosen the front door outside handle screw (A).

Hyundai Palisade. Repair procedures
5.

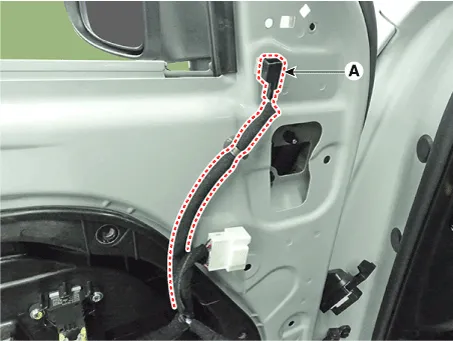

Press the loce pin and separate the outside rear view mirror connector (A).

Hyundai Palisade. Repair procedures
6.
Loosen the front door latch screws.
Tightening torque :
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

Hyundai Palisade. Repair procedures
7.

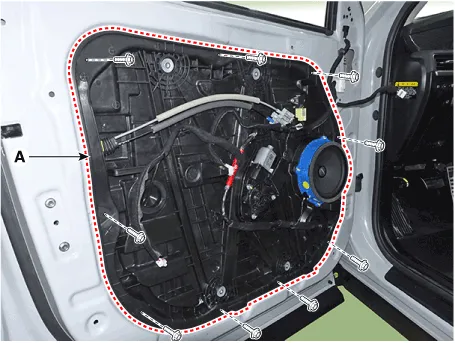

Loosen the front door moodule bolts and remove the front door module (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Hyundai Palisade. Repair procedures
8.
Disconnect the various connector fron the front door module and separate the front door module wiring harness (A).
9.
Remove the front door latch assembly.
(Refer to Front Door - "Front Door Latch Assembly")
10.
Remove the front power window motor.
(Refer to Body Electrical System - "Power Window Motor")
11.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure connectors are connected properly and each rod is connected securely.
•
Make sure the door locks / unlocks and opens / closes properly.
