Hyundai Palisade (LX2): Front Door / Front Door Belt Outside Weatherstrip

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip

Repair procedures

Replacement
1.
Pull down the front door window glass to the lowest level by pressing the power window glass switch.
2.

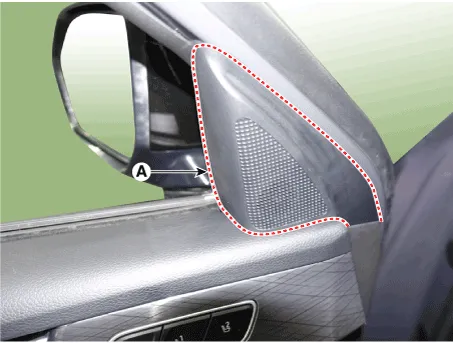

Remove the front door quadrant cover (A).

Hyundai Palisade. Repair procedures
3.

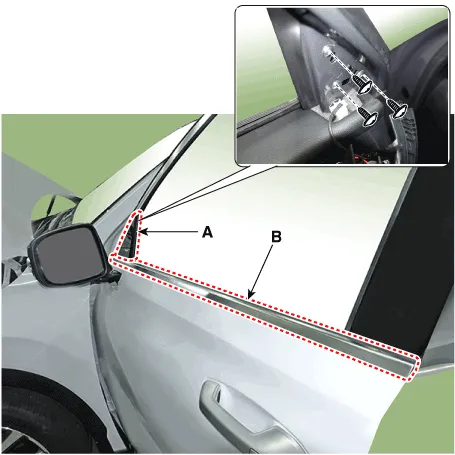

Loosen the mounting screws and remove the front door side garnish (A) and remove the front door belt outside weatherstrip (B).

Hyundai Palisade. Repair procedures
4.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
