Hyundai Palisade (LX2): Front Door / Front Door Belt Inside Weatherstrip

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

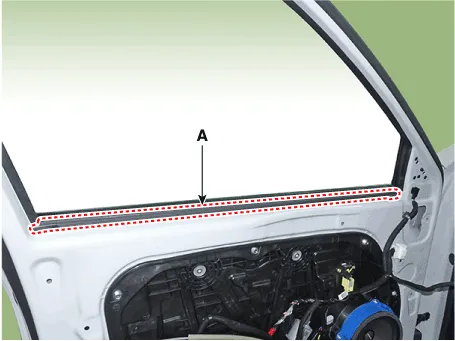

Remove the front door belt inside weatherstrip (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
When installing, install it by first contacting the inside part.
•
Replace any damaged clips (or pin-type retainers).

    Repair procedures Replacement 1. Pull down the front door window glass to the lowest level by pressing the power window glass switch.

    Repair procedures Replacement [Front door side weatherstrip] 1. Loosen the front door checker (B) mounting bolt.
