Components and components location

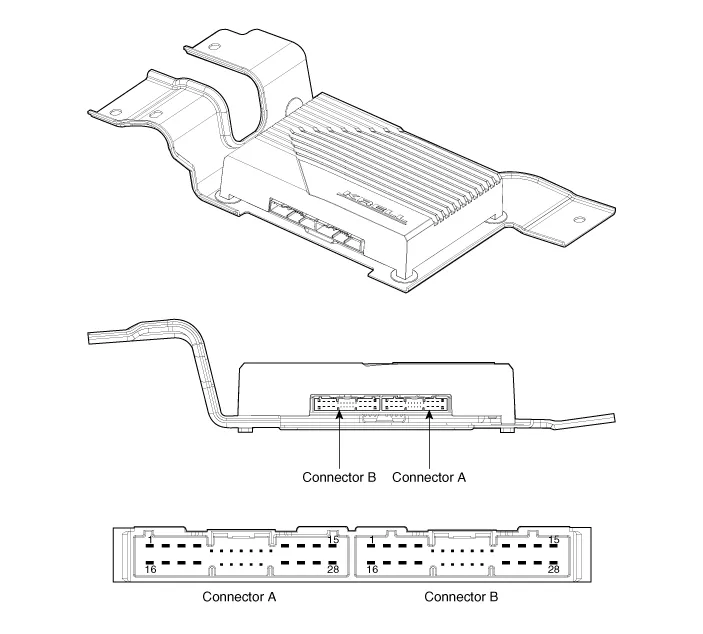

Components

Hyundai Palisade. Components and components location

Connector Pin Information

No	Connector A	Connector B
1	Battery (+)	Rear left door speaker (+)
2	Battery (+)	Rear left door speaker (-)
3	Battery (+)	Rear right door speaker (+)
4	Battery (+)	Rear right door speaker (-)
5	-	-
6	M-CAN (High)	-
7	M-CAN (Low)	-
8	ACC	-
9	Navigation voice (+)	-
10	-	-
11	-	-
12	Front left door speaker (+)	-
13	Front left door speaker (-)	Surround left speaker (+)
14	Front right door speaker (+)	Surround left speaker (-)
15	Front right door speaker (-)	Surround right speaker (+)
16	Ground	Surround right speaker (-)
17	Ground	Sub woofer speaker1 (+)
18	Ground	Sub woofer speaker1 (-)
19	Ground	Sub woofer speaker2 (+)
20	SPDIF (+)	Sub woofer speaker2 (-)
21	SPDIF (-)	-
22	SPDIF ground	-
23	Navigation voice (-)	-
24	IGN 1
25	Front left tweeter speaker (+)	-
26	Front left tweeter speaker (-)	-
27	Front right tweeter speaker (+)	Center speaker (+)
28	Front right tweeter speaker (-)	Center speake (-)

Repair procedures

Removal

External Amplifier

1.	Disconnect the negative (-) battery terminal.

2.	Remove the passenger seat assembly. (Refer to Body - "Front Seat Assembly")

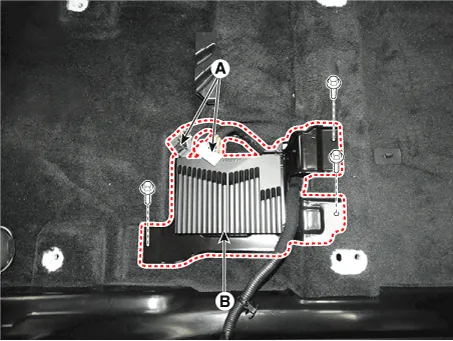

3.	Remove the external amplifier (B) after disconnecting the connectors (A) and loosening the mounting bolts (3EA).

Installation

External Amplifier

1.	Install the external amplifier after connecting the connector.

Install the passenger seat assembly.

–	Make sure the speaker and related connectors are plugged in properly.
