Hyundai Palisade (LX2): Your Vehicle at a Glance / Exterior Overview

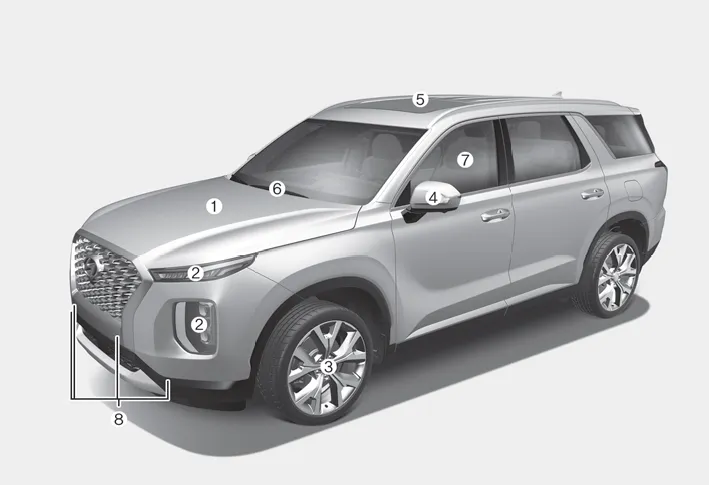

â– Front view
1. Hood
2. Front lamps
3. Tires and wheels
4. Side view mirror
5. Sunroof
6. Wiper blade
7. Windows
8. Parking Distance Warning system
(Reverse/Forward)

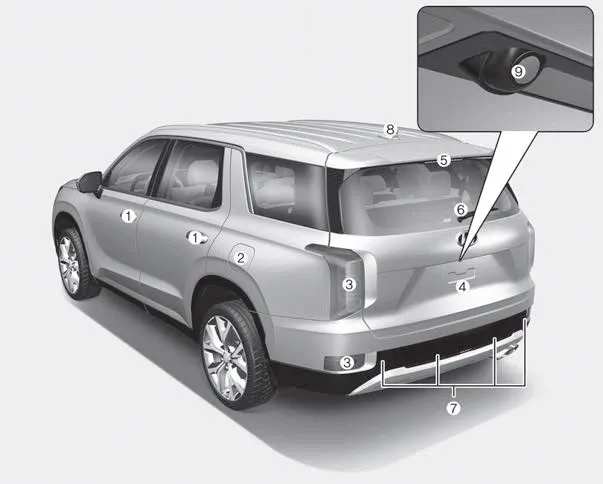

â– Rear view
1. Door
2. Fuel filler door
3. Rear lamps
4. Liftgate
5. High mounted stop lamp
6. Wiper blade
7. Parking Distance Warning
system (Reverse)
8. Antenna
9. Rearview monitor
1. Inside door handle 2. Central door lock/unlock switch 3. Power window switches 4. Power window lock button/ Electronic child safety lock button 5.
