Hyundai Palisade (LX2): Emergency Call System (Russia) / Emergency Call (eCall) Antenna

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Emergency Call System (Russia) / Emergency Call (eCall) Antenna

Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear roof trim.
(Refer to Body - "Roof Trim Assembly")
3.

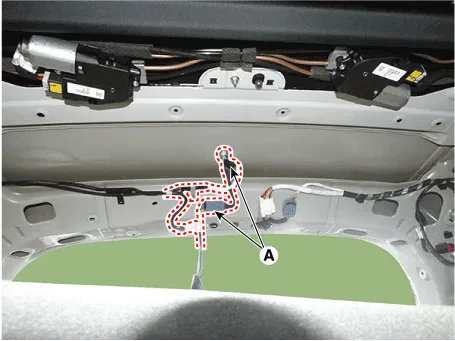

Disconnect the roof antenna connectors (A) from the roof antenna.

Hyundai Palisade. Repair procedures
4.

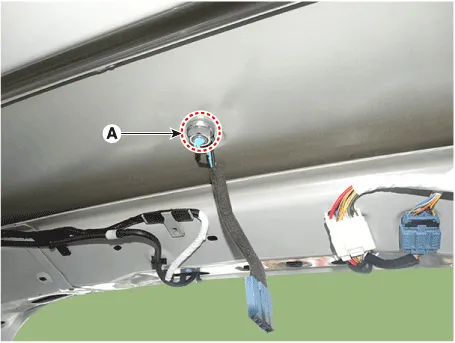

Remove the roof antenna (A) after removing a nut.

Hyundai Palisade. Repair procedures
Installation
1.
Connect the roof antenna connectors and then install the roof antenna.
2.
Install the rear roof trim.
Hyundai Palisade. Repair procedures
–
Make sure that the cables and connectors are plugged in properly.
–
Check the eCall system for normal operation.
