| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

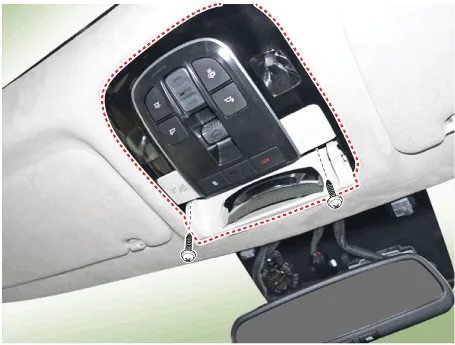

Remove the mounting screws (2EA).
And then remove the overhead console.
|
| 3. |

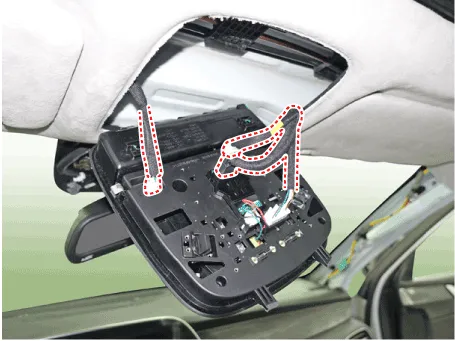

Remove the overhead console after disconnect the connector.
|
| Installation |
| 1. |
Install the overhead console lamp after connecting the connector.
|
| 2. |
Install the lens after tightening 2 screws.
|
| 3. |
Connect the negative (-) battery terminal.
|
Components and components location Component • The eCall unit for AVN is equipped in AVN head unit.
Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear roof trim.
Description and Operation Wireless Power Charger System During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone. Mobile phones certified with the wireless charging standard WPC (Qi 1.
Schematic diagrams Circuit Diagram Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the inside rear view mirror cover (A) and rain sensor cover (B).
