Hyundai Palisade (LX2): Timing System / Drive Belt
Repair procedures
| • |
Be careful not to damage the parts located under the vehicle
(floor under cover, fuel filter, fuel tank and canister) when
raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
|
|
| 1. |
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
| 2. |

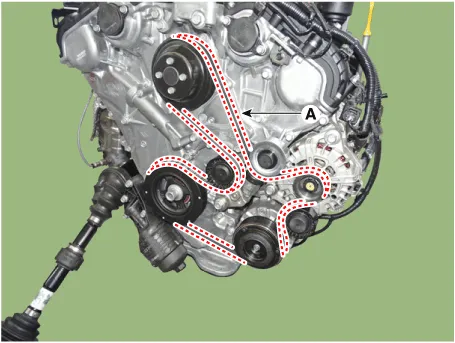

To release the tension, turn the drive belt tensioner counterclockwise
and then remove the drive belt (A).
| •
|
Install the drive belt in the following order :
Crankshaft damper pulley → A/C compressor pulley → Idler
Pulley → alternator pulley → Idler pulley → water pump
pulley → drive belt auto tensioner pulley.

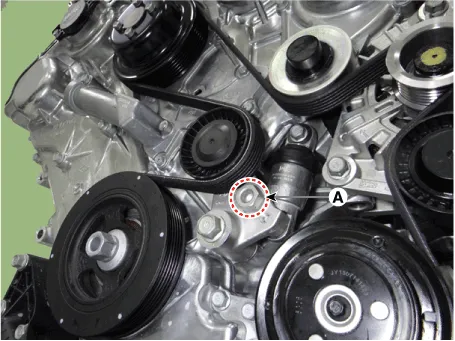

Rotate the auto tensioner arm by turning the auto tensioner
arm boss (A) counterclockwise using a wrench. After
installing the drive belt to the auto tensioner pulley,
slowly release the auto tensioner arm.
|
|
|
| 3. |
Install in the reverse order of removal.
|
Check belt for maintenance and V-ripped part for abnormal wear. Replace if necessary.
| • |
Do not bend, twist or turn the drive belt inside out.
|
| • |
Do not allow the drive belt to come into contact with oil, water
and steam.
|
|

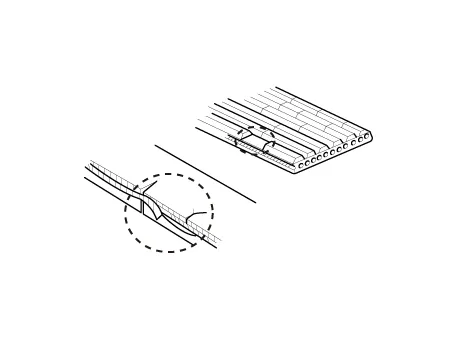

Visually check the belt for excessive wear, frayed cords etc.
If any defect is found, replace the drive belt.
| • |
Cracks on the rib side of a belt are considered acceptable.
If the belt has chunks missing from the ribs, it should be replaced.
|
|
Components
1. Timing chain cover
2. Oil pump sprocket
3. Oil pump chain
4. Oil pump tensioner assembly
5. Crankshaft oil pump sprocket
6.
Repair procedures
Removal and Installation
•
Be careful not to damage the parts located under the vehicle
(floor under cover, fuel filter, fuel tank and canister) when
raising the vehicle using the lift.
