Hyundai Palisade (LX2): Timing System / Components and components location
| Components |

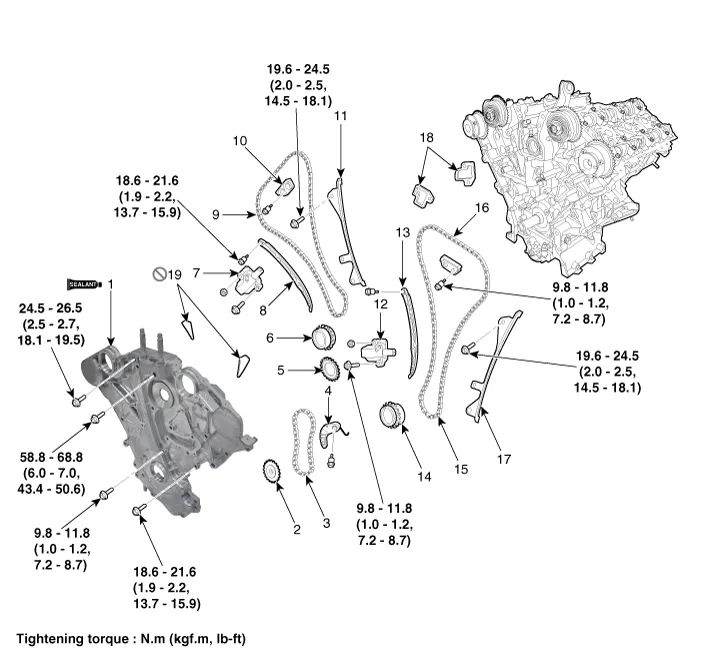

| 1. Timing chain cover 2. Oil pump sprocket 3. Oil pump chain 4. Oil pump tensioner assembly 5. Crankshaft oil pump sprocket 6. Crankshaft RH chain sprocket 7. RH Timing chain auto tensioner 8. RH Timing chain tensioner arm 9. RH Timing chain 10. RH Timing chain cam to cam guide |
11. RH Timing chain guide 12. LH Timing chain auto tensioner 13. LH Timing chain tensioner arm 14. Crankshaft LH chain sprocket 15. LH Timing chain 16. LH Timing chain cam to cam guide 17. LH Timing chain guide 18. Tensioner adapter 19. Gasket |
Repair procedures Removal and Installation • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
