Hyundai Palisade (LX2): ESP(Electronic Stability Program) System / Downhill Brake Control Switch

Hyundai Palisade (LX2) 2020-2026 Service Manual / Brake System / ESP(Electronic Stability Program) System / Downhill Brake Control Switch

Description and operation

Description

The DBC function is the acronym word of Downhill Brake Control function. When a vehicle goes down the hill, just pushing the DBC switch enables the car to keep its vehicle's speed at a constant value without operating the brake pedal. The DBC function is operated when the vehicle is on the decline and its velocity is under the predetermined speed.

Repair procedures

Removal

1.	Turn ignition switch OFF and disconnect the negative (-) battery cable.

2.	Remove the floor console upper cover. (Refer to Body - "Floor Console")

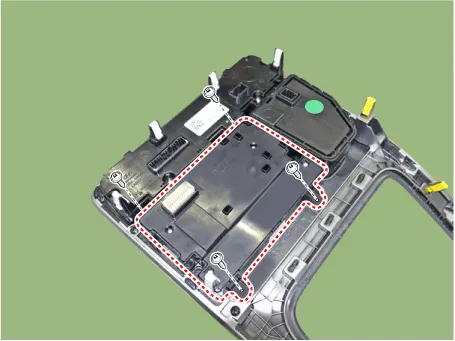

3.	Remove the DBC switch (A) after loosening the screw.

Installation

1.	To install, reverse the removal procedures.
