Hyundai Palisade (LX2): Timing System / Drive Belt Tensioner

Hyundai Palisade (LX2) 2020-2025 Service Manual / Engine Mechanical System / Timing System / Drive Belt Tensioner

Repair procedures

Removal and Installation
Hyundai Palisade. Repair procedures
•
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
2.

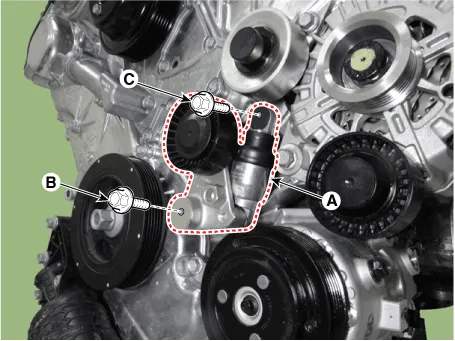

Remove the drive belt auto tensioner (A).
Tightening torque
Bolt (B) :
81.4 - 85.3N.m (8.3 - 8.7kgf.m, 60.0 - 62.9lb-ft)
Bolt (C) :
17.7 - 21.6N.m (1.8 - 2.2kgf.m, 13.0 - 15.9lb-ft)

Hyundai Palisade. Repair procedures
3.
Install in the reverse order of removal.
