Hyundai Palisade (LX2): Cooling System / Cooling Fan

Components and components location

Components

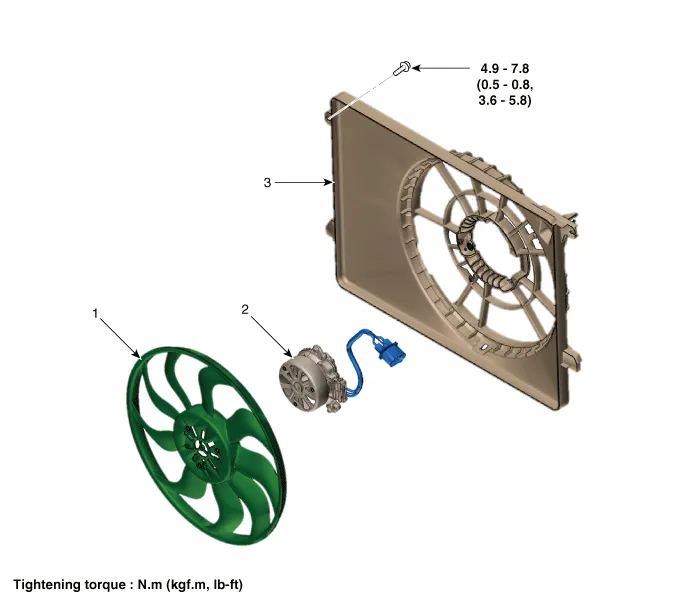

Hyundai Palisade. Components and components location

1. Cooling fan
2. Cooling fan motor
3. Cooling fan shroud

    Repair procedures Replacement And Air Bleeding    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    Components and components location Components 1. Radiator 2. Radiator upper hose 3. Radiator lower hose 4. Radiator upper mounting bracket 5.
