Hyundai Palisade (LX2): Cooling System / Radiator

Components and components location

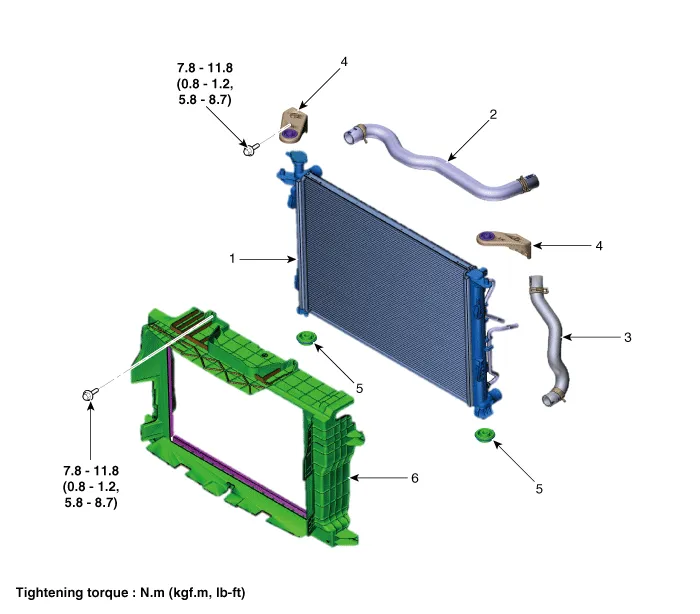

Components

Hyundai Palisade. Components and components location

1. Radiator
2. Radiator upper hose
3. Radiator lower hose

4. Radiator upper mounting bracket
5. Radiator lower mounting insulator
6. Radiator air guard
