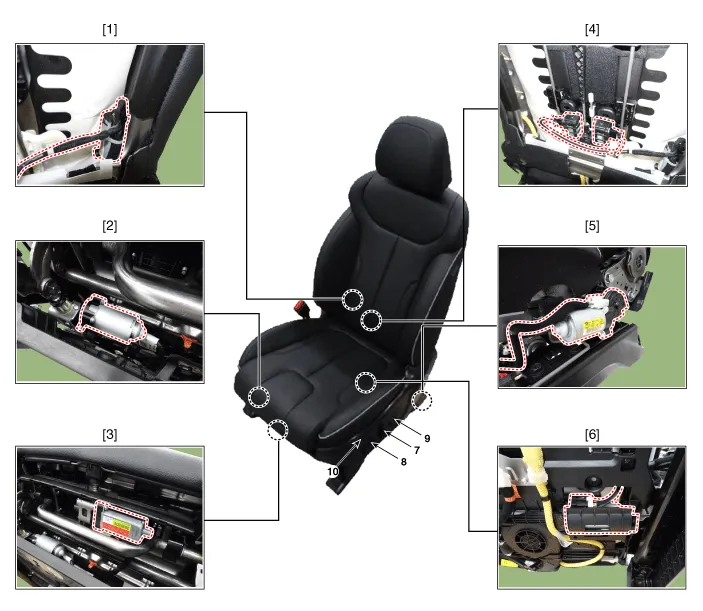

| Component Location |

| 1. Backlest motor 2. Front height motor 3. Cushion extension motor 4. Lumber support motor 5. Rear height motor |
6. Slide motor 7. Slide switch 8. Backrest switch 9. Lumber support switch 10. Cushion extension switch |
Repair procedures Inspection Power Seat Motor 1. Disconnect the connectors for each motor. (Refer to Body - "Front Seat Assembly") A : Slide motor B : Rear height motor C : Front height motor D : Lumber support motor (Vertical) E : Lumber support motor (Horizontal) F : Backlest motor G : Cushion extension motor 2.
Description • PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to IBU via LIN communication.
Schematic diagrams Schematic Diagrams Repair procedures Removal 1. Remove the bumper cover. (Refer to Body - "Front Bumper Cover") (Refer to Body - "Rear Bumper Cover") 2.
