Hyundai Palisade (LX2): Keyless Entry And Burglar Alarm / Components and components location

Component Location

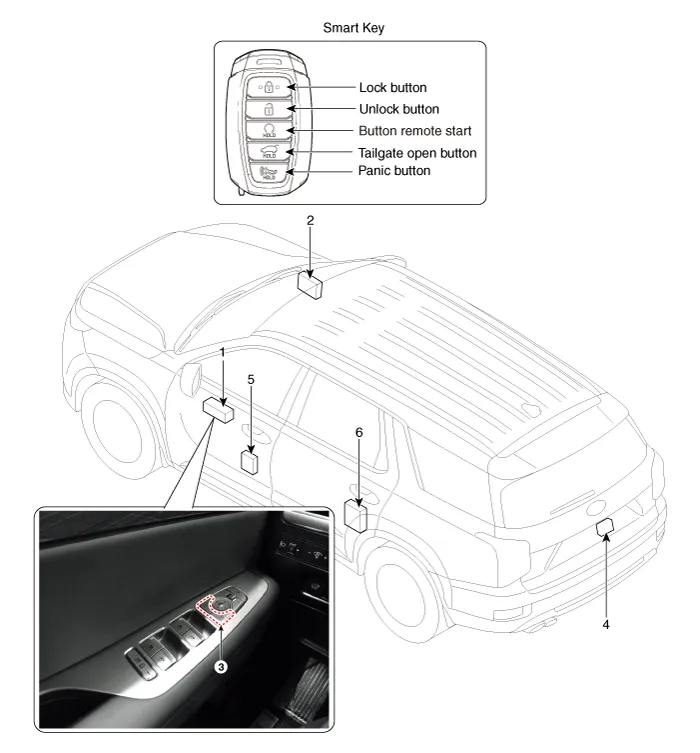

Hyundai Palisade. Components and components location

1. Hood switch
2. Horn
3. Intergrated Body Control Unit (IBU)
4. Front door lock actuator & switch
5. Rear door lock actuator & switch
6. Tailgate open switch

    Specification Item Specification Power source 3V Operating temperature -20°C to +60°C (-4°F to- +140°F) RF Modulation FSK LF Modulation ASK RF frequency 433.

    Description Burglar Alarm State [B/A State] B/A State Description DISARM 1) In "DISARM" state, no vehicle start inhibition.
