Hyundai Palisade (LX2): Smart Key System / Components and components location
| Component Location (1) |

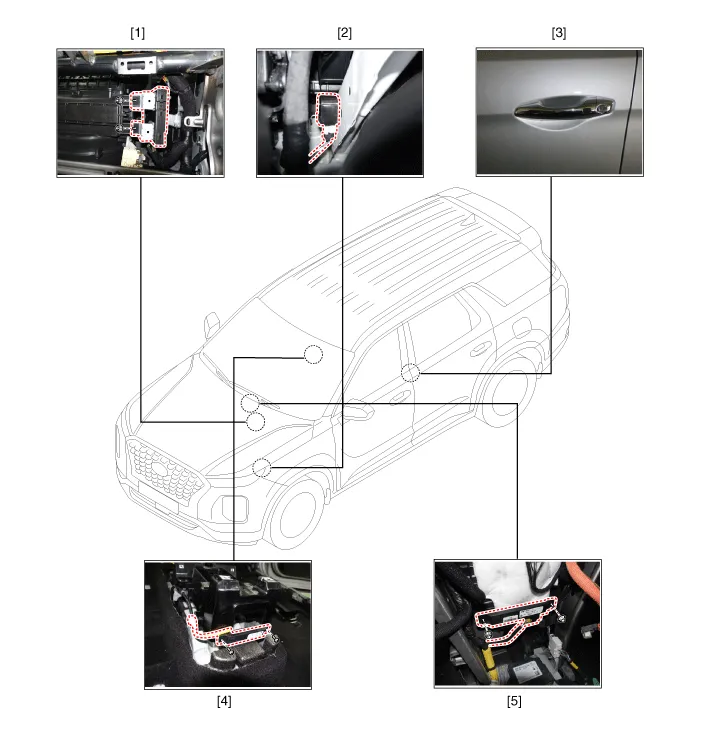

| 1. Integrated Body Control Unit
(IBU) 2. Buzzer 3. Door outside handle |
4. Interior antenna 2 5. Interior antenna 1 |

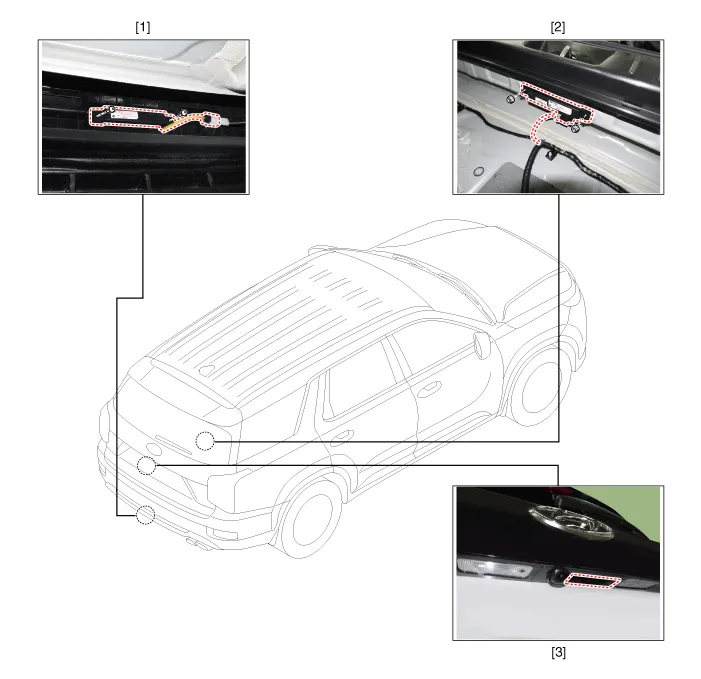

| 1. Bumper antenna 2. Trunk antenna |
3. Tailgate open switch |
Specifications Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 - 16V Operating temperature -22°F to 167°F (-30°C to- 75°C) Load Max.
Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed.
