Hyundai Palisade (LX2): Rear Bumper / Components and components location

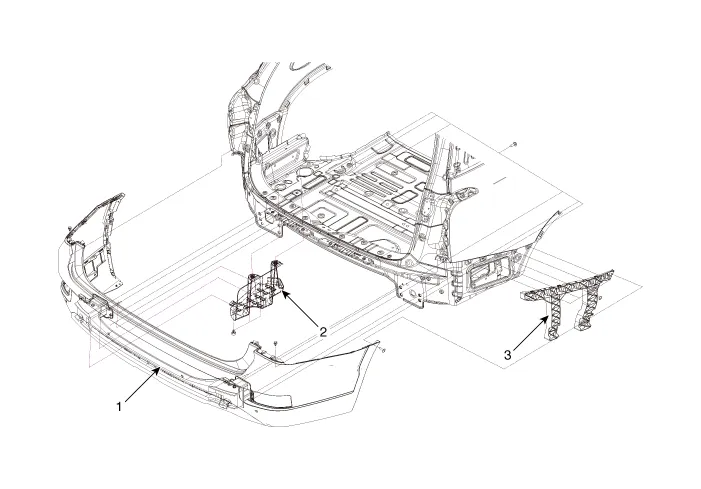

| Components |
| 1. Rear bumper cover 2. Rear side under cover |
3. Rear bumper side braket |
Components and components location Component Location 1. Rear bumper cover Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
