Hyundai Palisade (LX2): SRSCM / Components and components location

Hyundai Palisade (LX2) 2020-2026 Service Manual / Restraint / SRSCM / Components and components location

Components

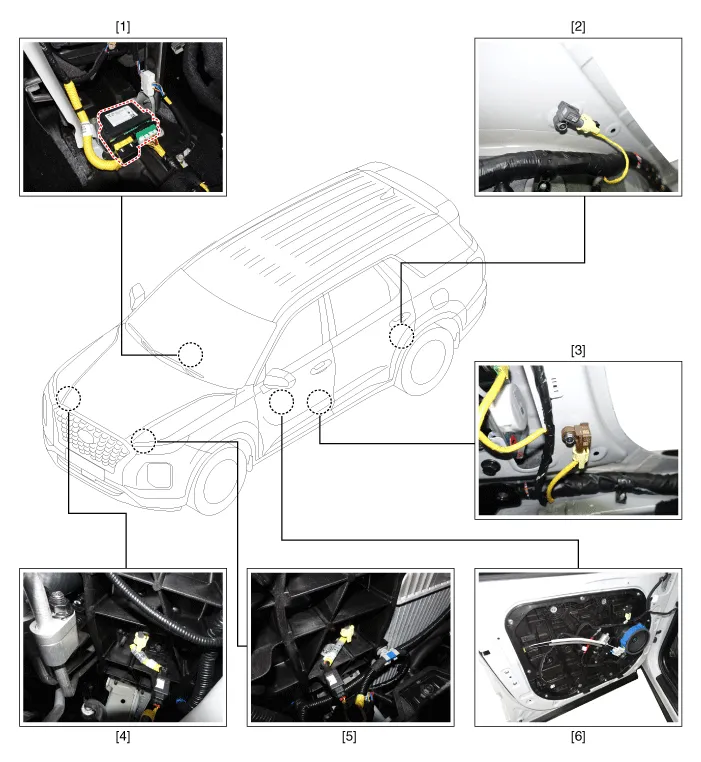

Hyundai Palisade. Components and components location

1. Supplemental Restraint System Control Module (SRSCM)
2. Rear Gravity side Impact Sensor (G-SIS)
3. Front Gravity side Impact Sensor (G-SIS)
4. Front impact sensor (FIS)
5. Front impact sensor (FIS)
6. Pressure Side Impact Sensor (P-SIS)

    Components and components location Components [LH] 1. Supplemental Restraint System Control Module (SRSCM) Description and operation Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does not.
