Hyundai Palisade (LX2): Rear Occupant Alert / Components and components location

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Rear Occupant Alert / Components and components location

Components

Hyundai Palisade. Components and components location

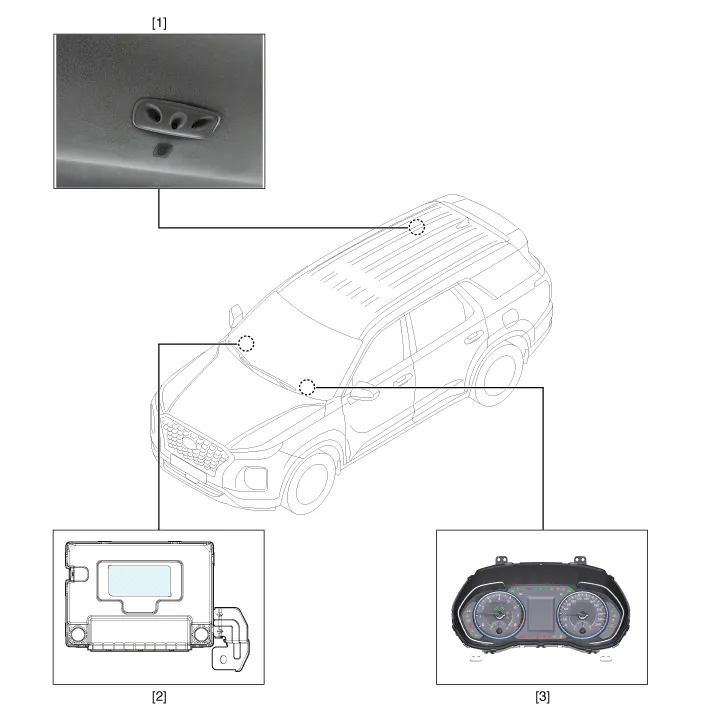

1. Rear Occupant Alert Sensor
2. Integrated body control unit
 3. Cluster (Message pop-up and Voice)

    Description The system detects the passenger in the vehicle and prevents the driver from getting off the vehicle with the passenger in the back.
