Hyundai Palisade (LX2): Engine Control System / Camshaft Position Sensor (CMPS)

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Camshaft Position Sensor (CMPS)

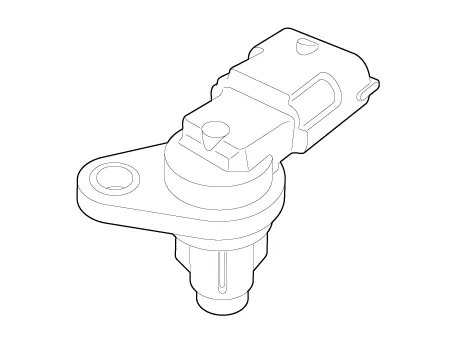

Description and operation

Description

Camshaft Position Sensor (CMPS) is a hall sensor, which detects the camshaft position by using a hall element.

It is related with Crankshaft Position Sensor (CKPS) and detects the piston position of each cylinder which cannot be detected by the CKPS.

The two CMPS are installed on engine head cover of bank 1 and 2 (intake, exhaust) respectively and use a target wheel installed on the camshaft. The Camshaft Position Sensor is a hall-effect type sensor. As the target wheel passes the Hall sensor, the magnetic field changes in the sensor. The sensor then switches a signal which creates a square wave.

Hyundai Palisade. Description and operation

Specifications

Specification

Item	Specification
Output Voltage (V)	High : 4.2 or more
Output Voltage (V)	Low : 0.5 or below
Air Gap (mm)	0.5 - 1.5
pin	3

Troubleshooting

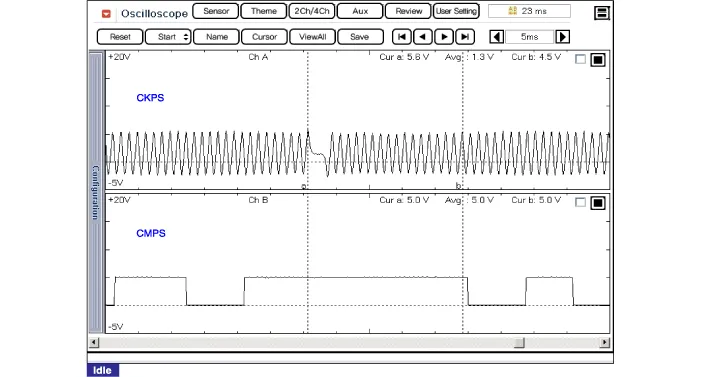

Signal Waveform

Hyundai Palisade. Troubleshooting

Schematic diagrams

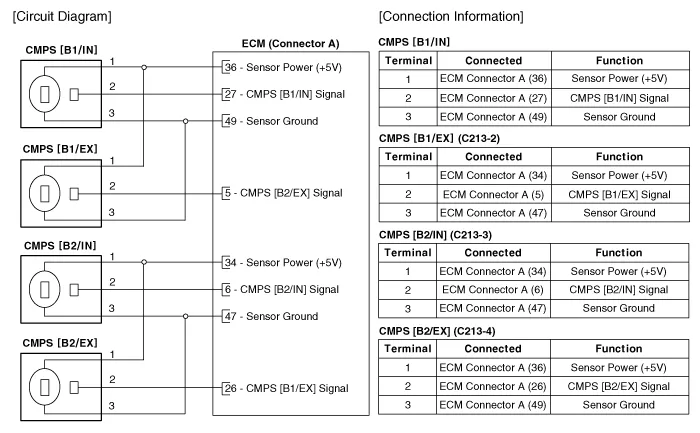

Circuit Diagram

Hyundai Palisade. Schematic diagrams

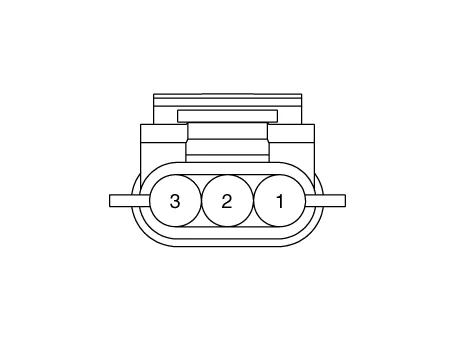

Harness Connector

Hyundai Palisade. Schematic diagrams
