| Components |

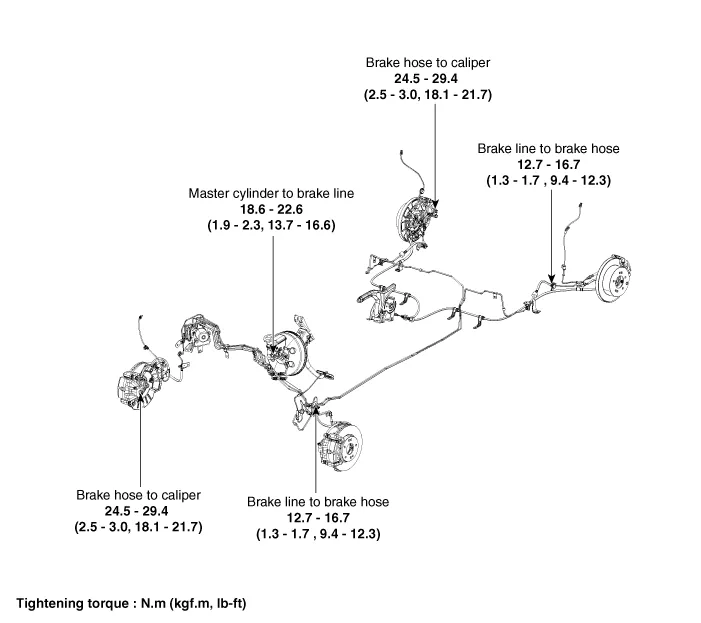

Components and components location Components 1. Reservoir cap 2. Reservoir 3. Reservoir pin 4. Grommet 5.
Specifications Specification Fluid Type DOT 3 or DOT 4 Reservoir Quantity (cc) Total A + B + C + D + E + F 460 ± 20 MAX LEVEL A + B + C + D + E 440 ± 20 MIN LEVEL B + C + D + E 165 ± 20 ON LEVEL C + D + E 135 ± 10 PARTIAL LEVEL D Pri : 60 ± 5 D Sec : 50 ± 5 CLUTCH LEVEL F 15 ± 5 Repair procedures Replacement • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Description and operation Description The cluster ionizer makes disinfection and decomposition of bad smell from the air-conditioner or inflow air. And it cleans the inside air of a vehicle. When the ignition switch is ON, the ionizer runs "CLEAN" mode and then "ION" mode, switching between both modes.
Variant Coding When you need variant coding: – Replace Front View Camera with a new one ※ EOL Variant Coding and calibration required for new replacement Front View Camera Variant Coding
