Hyundai Palisade (LX2): Charging System / Battery

Hyundai Palisade (LX2) 2020-2026 Service Manual / Engine Electrical System / Charging System / Battery

Specifications

Specification
Item
Specification
Model type
 AGM80L-BCI
Capacity [20HR/5HR] (AH)
 80/64
Cold Cranking Amperage (A)
 800 (SAE) / 640 (EN)
Reserve Capacity (Min)
 155

â–·CMF68L-DIN
Item
Specification
Capacity [20HR / 5HR] (AH)
 68 / 54
Cold Cranking Amperage (A)
 600 (SAE / EN)
Reserve Capacity (Min)
 113

â–·CMF80L-DIN
Item
Specification
Capacity [20HR / 5HR] (AH)
 80 / 64
Cold Cranking Amperage (A)
 660 (SAE / EN)
Reserve Capacity (Min)
 145

â–·CMF90L-DIN
Item
Specification
Capacity [20HR / 5HR] (AH)
 90 / 72
Cold Cranking Amperage (A)
 740 (SAE) / 740 (EN)
Reserve Capacity (Min)
 170

â–·CMF68L-DIN [Openable]
Item
Specification
Capacity [20HR / 5HR] (AH)
 68 / 54
Cold Cranking Amperage (A)
 600 (SAE / EN)
Reserve Capacity (Min)
 113

â–·CMF80L-DIN [Openable]
Item
Specification
Capacity [20HR / 5HR] (AH)
 80 / 64
Cold Cranking Amperage (A)
 660 (SAE / EN)
Reserve Capacity (Min)
 145

â–·CMF90L-DIN [Openable]
Item
Specification
Capacity [20HR / 5HR] (AH)
 90 / 72
Cold Cranking Amperage (A)
 740 (SAE) / 740 (EN)
Reserve Capacity (Min)
 170

Hyundai Palisade. Specifications
•
Model type description

Hyundai Palisade. Specifications
•
Cold Cranking Ampere (CCA) : A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
–
The rating is the number of amps a new, fully charged battery can deliver at -18 °C(-0.4 °F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
–
The higher the CCA rating, the greater the starting power of the battery.
•
RESERVE CAPACITY (RC) : A battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
–
The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
–
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

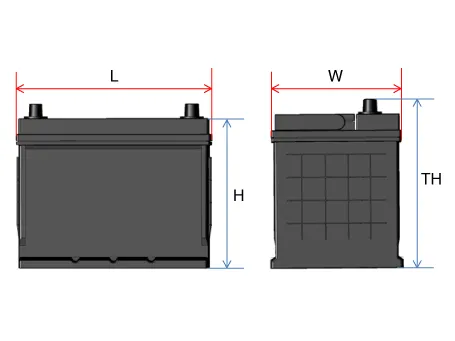

Hyundai Palisade. Specifications

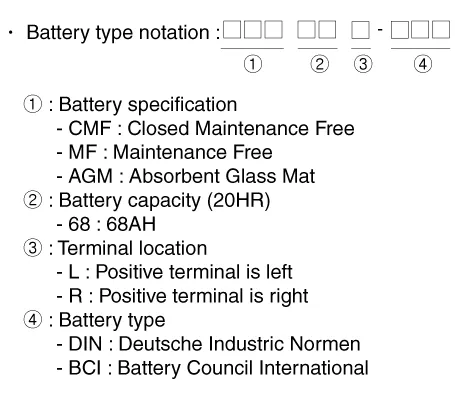

BCI Type
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
28/35
 188 - 192
 126 - 130
 198 - 202
 218 - 222
32/40
 194 - 198
 133 - 137
 199 - 203
 223 - 227
36/45
 203 - 207
 173 - 177
 200 - 204
 221 - 225
44/55
 213 - 217
 173 - 177
 198 - 202
 218 - 222
48/60
 228 - 232
 173 - 177
 200 - 204
 221 - 225
54/68
 258 - 262
 173 - 177
 198 - 202
 220 - 224
56/70
 258 - 262
 173 - 177
 198 - 202
 223 - 227
64/80
 274 - 278
 170 - 174
 198 - 202
 221 - 225
70/88
 349 - 353
 172 - 176
 186 - 200
 183 - 187
72/90
 300 - 304
 170 - 174
 200 - 204
 221 - 225
76/95
 294 - 298
 172 - 176
 198 - 202
 220 - 224
80/100
 326 - 330
 170 - 174
 203 - 207
 225 - 229

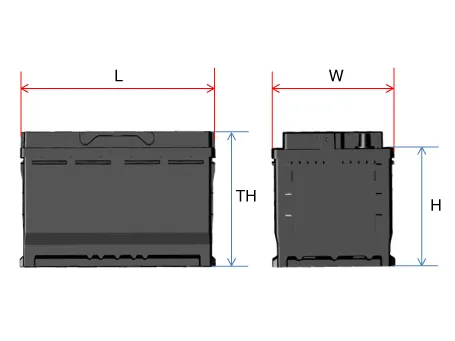

Hyundai Palisade. Specifications

DIN Type
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
36/45
 205 - 207
 173 - 175
 164 - 168
 188 - 190
48/60
 205 - 207
 173 - 175
 164 - 168
 188 - 190
54/68
 205 - 207
 173 - 175
 164 - 168
 188 - 190
64/80
 205 - 207
 173 - 175
 164 - 168
 188 - 190
72/90
 205 - 207
 173 - 175
 164 - 168
 188 - 190
80/100
 205 - 207
 173 - 175
 164 - 168
 188 - 190
88/110
 205 - 207
 173 - 175
 164 - 168
 188 - 190

AGM DIN Type
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
40/50
 205 - 207
 173 - 175
 164 - 168
 188 - 190
48/60
 227 - 229
 173 - 175
 164 - 168
 188 - 190
56/70
 276 - 278
 173 - 175
 164 - 168
 188 - 190
64/80
 312 - 314
 173 - 175
 164 - 168
 188 - 190
72/90
 351 - 353
 173 - 175
 164 - 168
 188 - 190
84/105
 392 - 394
 173 - 175
 164 - 168
 188 - 190

Hyundai Palisade. Specifications

Description and operation

Description
1.
The CMF(Closed Maintenance Free) battery is, as the name implies, totally maintenance free and has no removable battery cell caps.
2.
The CMF(Closed Maintenance Free) battery does not require water replenishment for the repair.
3.
The battery is completely sealed, except for small vent holes in the cover.

Troubleshooting

Troubleshooting

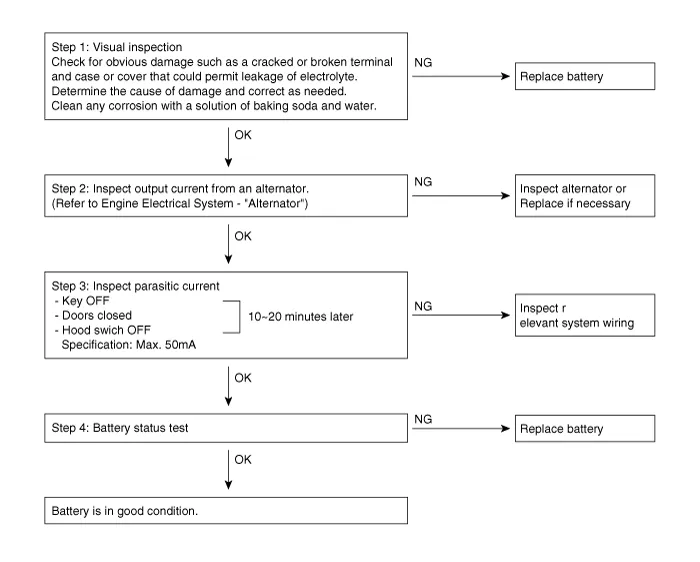

Hyundai Palisade. Troubleshooting
