Hyundai Palisade (LX2): Convenient Features of Your Vehicle / Automatic climate control system

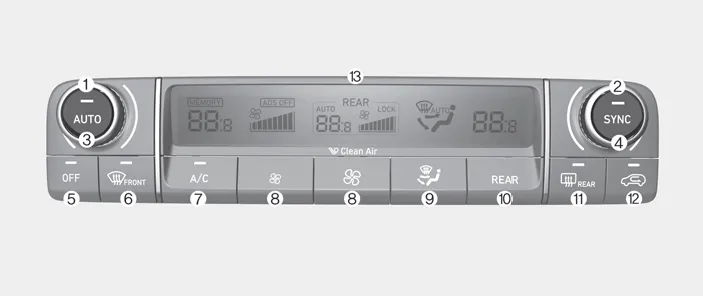

Front
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. SYNC button
5. OFF button
6. Front windshield defroster button
7. Air conditioning button
8. Fan speed control button
9. Mode selection button
10. Rear climate control button
11. Rear window defroster button
12.Air intake control button
13. Climate control information screen
- Automatic Temperature Control Mode
- Manual Temperature Control Mode
- Rear climate control
- System Operation
- System Maintenance
Cabin air filter [A] : Outside air, [B] : Recirculated air, [C] : Climate control air filter, [D] : Blower, [E] : Evaporator core, [F] : Heater core The cabin air filter is installed behind the glove box.
The Automatic Climate Control System is controlled by setting the desired temperature. For your convenience and to improve the efficiency of the climate control, use the AUTO button and set the temperature to 72°F (22°C).
