Hyundai Palisade (LX2): Automatic climate control system / Rear climate control

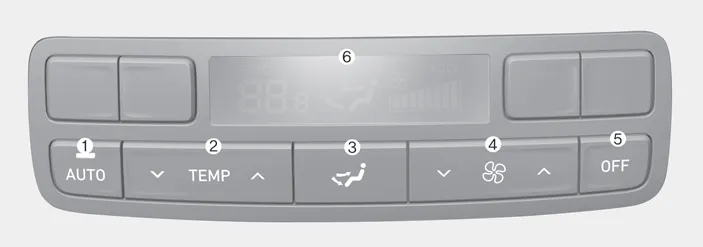

■ 2nd row air conditioning control
1. AUTO button
2. Temperature control button
3. Mode selection button
4. Fan speed control button
5. OFF button
6. Climate control information screen
If you press the rear climate control button of the front climate control system, rear passengers can control the rear climate system by using the rear climate control system.
❈ When you want to use the rear climate control (heating and air conditioning)
1. Press the air conditioning button of the front climate control.
2. Adjust the rear climate control (temperature, air direction and fan speed).
3. Check that "Lock Control" is not selected in the infotainment system. If "Lock Control" is selected, the rear climate control is not adjusted in the rear climate control panel.
- Fan speed control, Temperature control
- AUTO mode, OFF mode, Mode selection
- Rear vents on the headliner
Air conditioning (7) Push the A/C button to manually turn the system on (indicator light will illuminate) and off. OFF mode (5) Push the OFF button to turn the climate control system off.
Fan speed control 1. Press the rear climate control button of the front climate control system. 2. The fan speed can be set to the desired speed by pushing the fan speed control button.
