Hyundai Palisade (LX2): Audio / Audio Unit

Hyundai Palisade (LX2) 2020-2026 Service Manual / Body Electrical System / Audio / Audio Unit

Components and components location

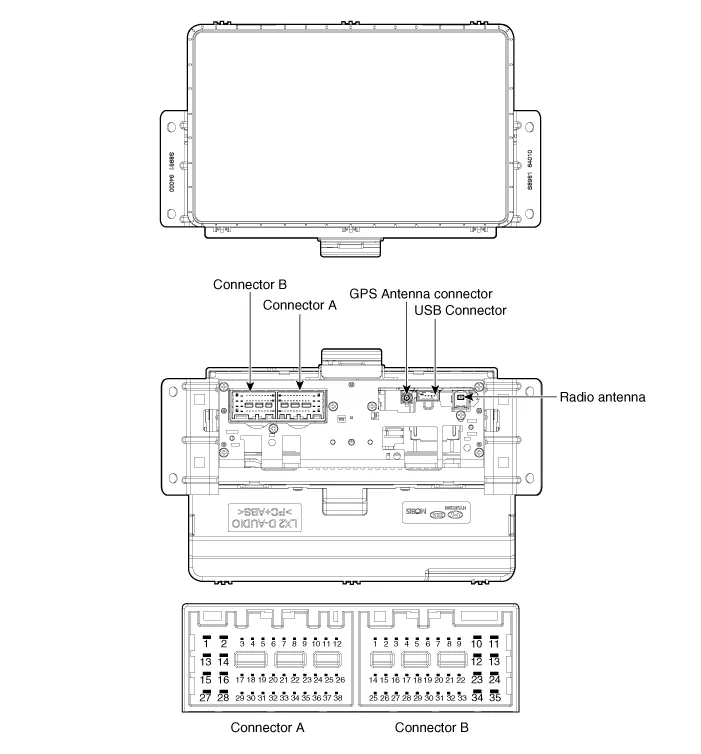

Components

Hyundai Palisade. Components and components location

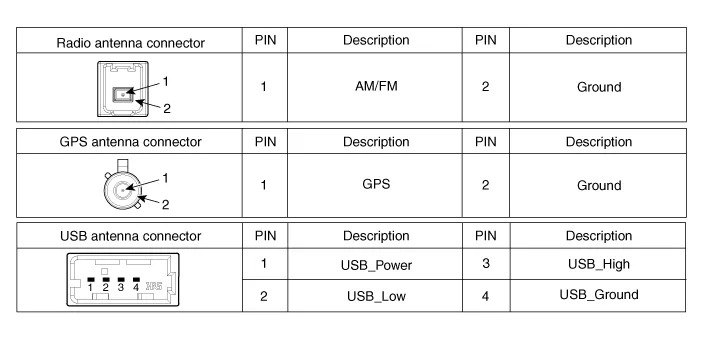

Connector Pin Information

No	Connector A	Connector B
1	Rear left speaker (+)	-
2	Rear left speaker (-)	Mic (+)
3	-	-
4	-	-
5	-	Antenna power
6	Camera _Power	Illumination (+)
7	Camera_ Video	MM CAN High
8	-	-
9	-	-
10	-	Battery (+)
11	DTC	Battery (+)
12	Steering wheel remote	Ground
13	Front left speaker (+)	Ground
14	Front left speaker (-)	-
15	Front right speaker (-)	Mic (+)
16	Front right speaker (+)	-
17	-	-
18	-	-
19	-	Illumination (-)
20	Camera power_Ground	MM CAN Low
21	Camera video_Ground	-
22	-	ACC
23	-	-
24	-	-
25	-	-
26	Steering wheel remote ground	-
27	Rear right speaker (-)	-
28	Rear right speaker (+)	-
29	-	-
30	-	-
31	-	-
32	-	Ignition
33	Camera shield _Ground	-
34	-	-
35	-	-
36	-
37	-
38	-
39	Speed

Hyundai Palisade. Components and components location

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal

2.	Remove the center fascia panel. (Refer to Body - "Center Fascia Panel")

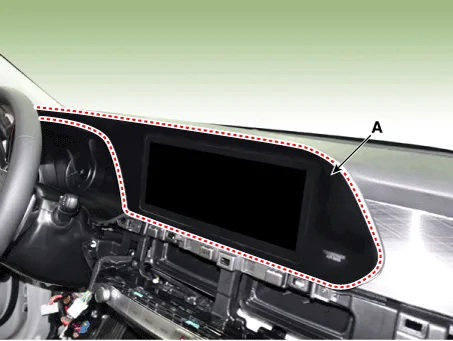

3.	Using a flat-head screwdriver, remove the monitor cover (A).

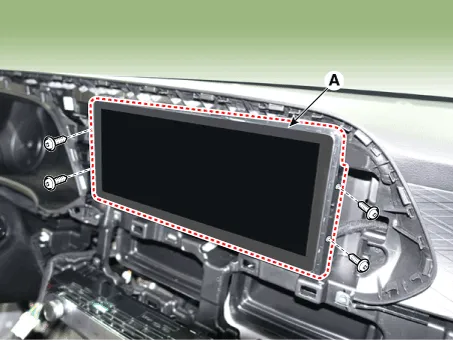

4.	Loosen mounting screws and then remove the audio assembly (A).

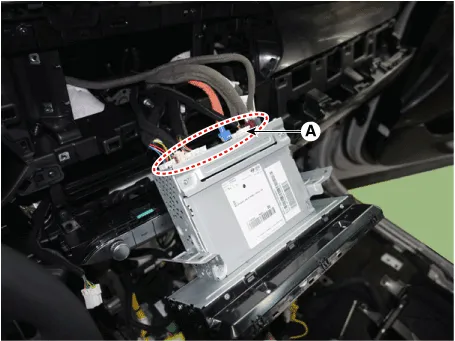

5.	Remove the audio head unit after disconnecting connectors (A).

Installation

1.	Connect the audio unit connectors..

2.	Install the audio head unit.

3.	Install the monitor cover.

4.	Install the center fascia panel.

Connect the negative (-) battery terminal.

•	Make sure the connector are connected in properly.

•	Check the audio system.
