Hyundai Palisade (LX2): Audio / Components and components location

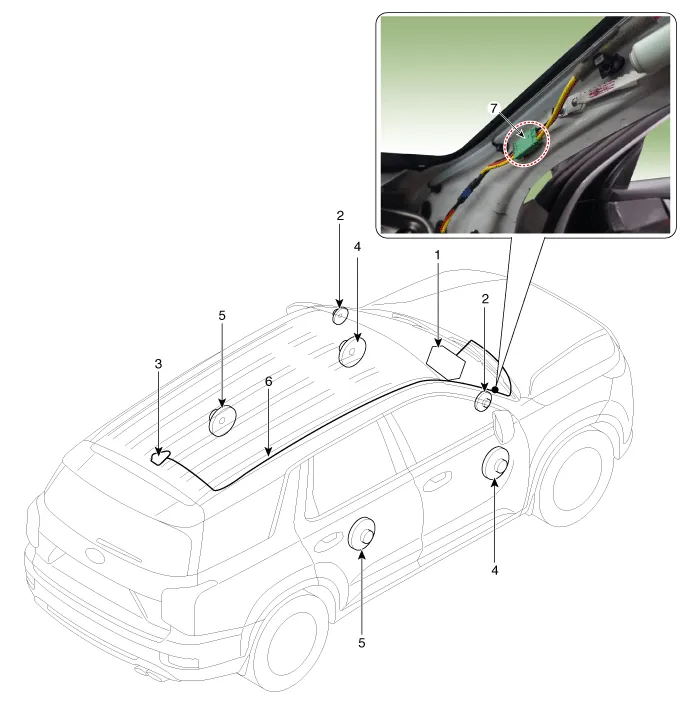

| Component Location |
| 1. Audio unit 2. Tweeter speaker 3. Roof antenna (Radio) 4. Front door speaker |
5. Rear door speaker 6. Antenna feeder cable 7. Antenna cable connector |
Specifications Audio Item Specification Model Display Audio 2.0 Power supply DC 14.
Components and components location Components Connector Pin Information No Connector A Connector B 1 Rear left speaker (+) - 2 Rear left speaker (-) Mic (+) 3 - - 4 - - 5 - Antenna power 6 Camera _Power Illumination (+) 7 Camera_ Video MM CAN High 8 - - 9 - - 10 - Battery (+) 11 DTC Battery (+) 12 Steering wheel remote Ground 13 Front left speaker (+) Ground 14 Front left speaker (-) - 15 Front right speaker (-) Mic (+) 16 Front right speaker (+) - 17 - - 18 - - 19 - Illumination (-) 20 Camera power_Ground MM CAN Low 21 Camera video_Ground - 22 - ACC 23 - - 24 - - 25 - - 26 Steering wheel remote ground - 27 Rear right speaker (-) - 28 Rear right speaker (+) - 29 - - 30 - - 31 - - 32 - Ignition 33 Camera shield _Ground - 34 - - 35 - - 36 - 37 - 38 - 39 Speed Repair procedures Removal 1.
