Hyundai Palisade (LX2): LCD Display Modes / Assist mode
SCC/LKA/DAW
This mode displays the state of the Smart Cruise Control (SCC), Lane Keeping Assist (LKA) and Driver Attention Warning (DAW).

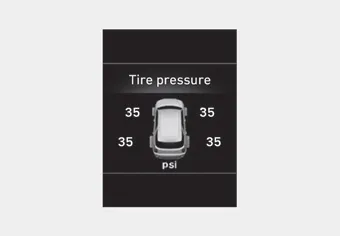

Tire Pressure
This mode displays information related to Tire Pressure.

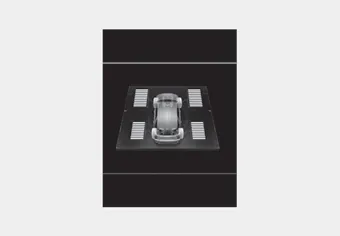

Driving force distribution (AWD)
This mode displays information related to AWD driving force.
Trip computer mode The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.
This warning light informs the driver the following situations. - LED headlamp malfunction (if equipped) - Forward Collision-Avoidance Assist system malfunction (if equipped) - Forward Collision-Avoidance Assist radar blocked (if equipped) - Blind-Spot Collision Warning system malfunction (if equipped) - Blind-Spot Collision Warning radar blocked (if equipped) - Smart Cruise Control with Stop & Go malfunction (if equipped) - Smart Cruise Control with Stop & Go radar blocked (if equipped) - Lamp malfunction - High Beam Assist malfunction (if equipped) - Tire Pressure Monitoring System (TPMS) malfunction The Master Warning Light illuminates if one or more of the above warning situations occur.
