Hyundai Palisade: Timing System / Idler

Hyundai Palisade (LX2) 2020-2025 Service Manual / Engine Mechanical System / Timing System / Idler

Repair procedures
Removal and Installation
Hyundai Palisade. Repair procedures
Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "Lift and Support Points")
1.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
2.

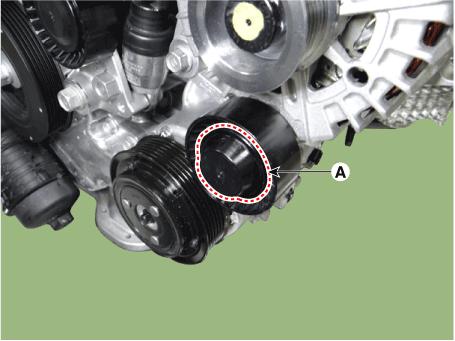

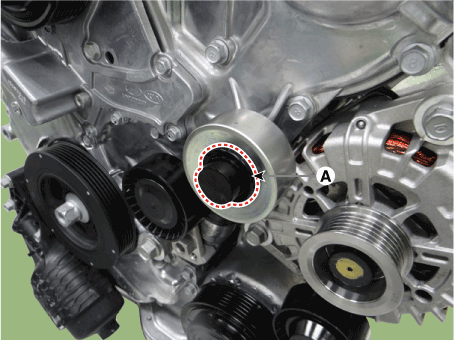

Remove the idler cap cover (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

3.

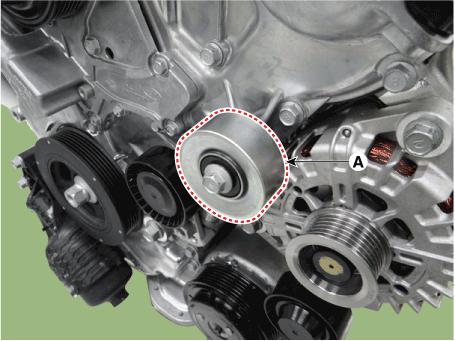

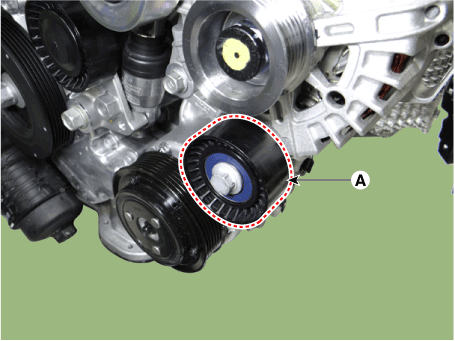

Remove the idler (A).
Tightening torque :
53.9 - 57.9 N.m (5.5 - 5.9 kgf.m, 39.8 - 42.7 lb.ft)

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures

4.
Install in the reverse order of removal.
Inspection
Check the idler for excessive oil leakage, abnormal rotation or vibration. Replace if necessary.
