Type A

Hyundai Palisade. signal lamp and Side marker

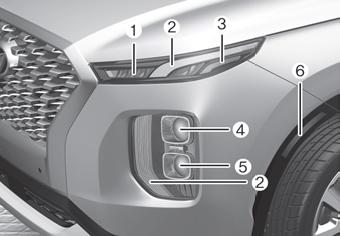

(1) Turn signal lamp
(2) Daytime running light / Parking lamp
(3) Side marker lamp
(4) Headlamp (Low)
(5) Headlamp (High)
(6) Side reflex reflector

Daytime running light (DRL), parking lamp, turn signal lamp and side marker lamp

If the LED lamp does not operate, have the system checked by an authorized HYUNDAI dealer.

The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

Hyundai Palisade. signal lamp and Side marker

■ Low beam

Hyundai Palisade. signal lamp and Side marker

■ High beam

Headlamp

1. Open the hood.

2. Disconnect the negative battery cable.

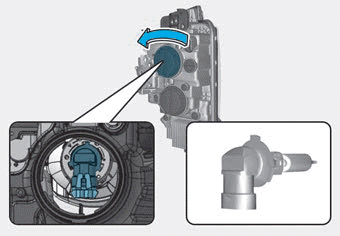

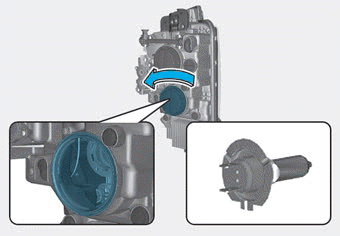

3. Remove the headlamp bulb cover by turning it counterclockwise.

4. Disconnect the headlamp bulb socket-connector.

5. Remove the bulb socket from the headlamp assembly by turning it counterclockwise.

6. Install a new headlamp bulb.

7. Connect the headlamp bulb socket- connector.

8. Install the headlamp bulb cover by turning it clockwise.

Information

The headlamp aiming should be adjusted after an accident or after the headlamp assembly is reinstalled at an authorized HYUNDAI dealer.

WARNING

Hyundai Palisade. signal lamp and Side marker

  • Handle halogen bulbs with care. Halogen bulbs contain pressurized gas that will produce flying pieces of glass that could cause injuries if broken.
  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.



  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.

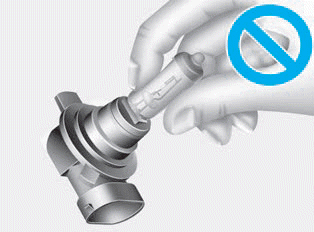

  • Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.
  • A bulb should be operated only when installed in a headlamp.
  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

Type B

Hyundai Palisade. signal lamp and Side marker

(1) Turn signal lamp
(2) Daytime running light / Parking lamp
(3) Side marker lamp
(4) Headlamp (Low/High)
(5) Headlamp (High)
(6) Side reflex reflector

Headlamp, parking lamp, daytime running light, turn signal lamp and side marker lamp

If the LED lamp does not operate, have the system checked by an authorized HYUNDAI dealer.

The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

    Light bulbs

    Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to the bulb...

    Side Repeater Lamp Replacement

    If the LED lamp (1) does not operate, have the system checked by an authorized HYUNDAI dealer. The LED lamps cannot be replaced as a single unit because it is an integrated unit...
