Hyundai Palisade: ISG (Idle Stop and Go) system / To Activate the ISG System

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Driving Your Vehicle / ISG (Idle Stop and Go) system / To Activate the ISG System

Prerequisite for activation

The ISG system operates in the following situations.

- The driver's seatbelt is fastened.
- The driver's door and the hood are closed.
- The brake vacuum pressure is adequate.
- The battery is sufficiently charged.
- The outside temperature is between 14 °F and 95 °F (-10 °C and 35 °C).
- The engine coolant temperature is not too low.
- The system is not in the diagnostic mode.
- The incline is gradual.
- Steering wheel is turned less than 180 degrees
- Shift lever is in DRIVE or NEUTRAL

Information

Hyundai Palisade. To Activate the ISG System

  • The ISG system is not activated, when the prerequisites to activate the ISG system are unsatisfied. In this case, the ISG OFF button indicator illuminates, and the auto stop indicator (Hyundai Palisade. To Activate the ISG System) illuminates in yellow on the instrument cluster.
  • When the above indicator remains illuminated on the instrument cluster, we recommend that you have the IGS system checked by an authorized HYUNDAI dealer.

Auto stop

To stop the engine in idle stop mode

1. Decrease the vehicle speed to 0 mph.

2. Depress the brake pedal with the shift lever in D (Drive) or N (Neutral).

The auto stop indicator (Hyundai Palisade. To Activate the ISG System) illuminates in green on the instrument cluster, when the engine stops.

Information

The driving speed must reach at least 3 mph (5 km/h) after an idle stop to stop the engine in idle stop mode again.

In auto stop mode, when the driver opens the hood, the ISG system will be deactivated.

When the system is deactivated:

Hyundai Palisade. To Activate the ISG System

The ISG OFF button indicator illuminates.

Hyundai Palisade. To Activate the ISG System

If the message "Auto Stop is Off.

Start vehicle manually", appears on the LCD display with a beep sound, restart the vehicle manually by depressing the brake pedal with the vehicle shifted to P (Park) or N (Neutral). For your safety, restart the vehicle in the P (Park) position.

Auto start

To restart the engine in the auto stop mode

Release the brake pedal.

- When Auto Hold is activated, if you release the brake pedal, the engine will be in the auto stop state. However, if you depress the accelerator pedal, the engine will start again.

The auto stop indicator (Hyundai Palisade. To Activate the ISG System) goes OFF on the instrument cluster, when the engine is restarted.

The engine is automatically restarted in the following situations.

  • The fans speed of the manual climate control system is set above the 3rd position, with the air condition ON.
  • The fan speed of the automatic climate control system is set above the 6th position, with the air condition ON.
  • A certain period of time has elapsed with the air condition ON.
  • The defroster is activated.
  • The brake vacuum pressure is low.
  • The battery is weak.
  • The vehicle is shifted to P (Park) or R (Reverse) when the brake pedal is depressed or the Auto Hold is activated.
  • The door is opened or seat belt is unfastened when the brake pedal is depressed or Auto Hold is activated.
  • The EPB is pressed when the Auto Hold is activated.

The auto stop indicator (Hyundai Palisade. To Activate the ISG System) blinks in green for 5 seconds on the instrument cluster.

The auto start is temporarily deactivated in the following situations.

Hyundai Palisade. To Activate the ISG System

When the gear is shifted from N (Neutral) to R (Reverse), D (Drive) or Manual shift mode without the brake pedal depressed. A message "Press brake pedal for Auto Start" will appear on the LCD display. To activate auto start, depress the brake pedal.

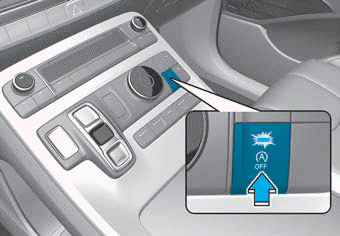

To Deactivate the ISG System

  • Press the ISG OFF button to deactivate the ISG system. Then, the ISG OFF button indicator illuminates.
  • Press the ISG OFF button again to reactivate the ISG system. Then, the ISG OFF button indicator turns OFF.

    ISG (Idle Stop and Go) system

    The Idle Stop and Go (ISG) system automatically and temporarily shuts down the engine when the vehicle is stopped and idling to improve fuel efficiency and reduce exhaust gas emissions...

    ISG System Malfunction

    The ISG system may not operate: When there is a malfunction with the ISG sensors or the ISG system. The followings occur, when there is a malfunction with the ISG system: The auto stop indicator () will blink in yellow on the instrument cluster...
