Hyundai Palisade: Gauges and Meters / Fuel gauge
![Hyundai Palisade. Fuel gauge](images/fuel_gauge-136/1/hyundai_palisade_fuel_gauge_206.png)

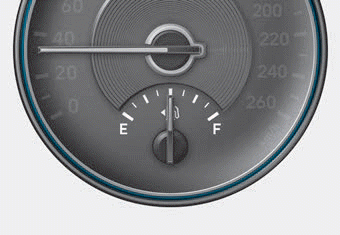

■ Type A and B
![Hyundai Palisade. Fuel gauge](images/fuel_gauge-136/1/hyundai_palisade_fuel_gauge_207.png)

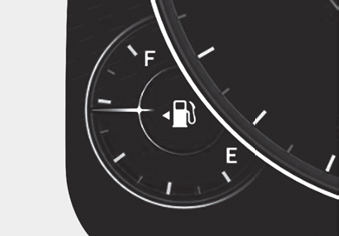

■ Type C
This gauge indicates the approximate
amount of fuel remaining in the
fuel tank.
Information
- The fuel tank capacity is given in
chapter 8.
- The fuel gauge is supplemented by a
low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
- On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the movement of
fuel in the tank.
WARNING
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain additional
fuel as soon as possible
after the warning light comes
on or when the gauge indicator
comes close to the "E (Empty)"
level.
NOTICE
Avoid driving with an extremely
low fuel level. Running out of fuel
could cause the engine to misfire
damaging the catalytic converter.
