Hyundai Palisade: Gauges and Meters / Engine coolant temperature gauge

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Convenient Features of Your Vehicle / Instrument cluster / Gauges and Meters / Engine coolant temperature gauge

Hyundai Palisade. gauge

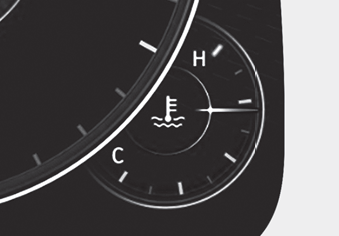

■ Type A and B

Hyundai Palisade. gauge

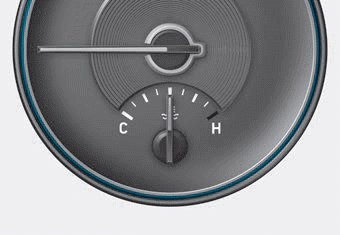

■ Type C

This gauge indicates the temperature of the engine coolant when the ignition switch is in the ON position.


If the gauge pointer moves beyond the normal range area toward the "H" position, it indicates overheating that may damage the engine.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to "If the Engine Overheats" in chapter 6.


Never remove the radiator cap or engine coolant reservoir cap when the engine is hot. The engine coolant is under pressure and could severely burn. Wait until the engine is cool before adding coolant to the reservoir.


    ■ Type A and B ■ Type C The tachometer indicates the approximate number of engine revolutions per minute (rpm). NOTICE Do not operate the engine within the tachometer's RED ZONE...

    Fuel gauge

    ■ Type A and B ■ Type C This gauge indicates the approximate amount of fuel remaining in the fuel tank. Information The fuel tank capacity is given in chapter 8...
