Hyundai Palisade: Front Door / Front Door Belt Inside Weatherstrip

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip

Repair procedures
Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

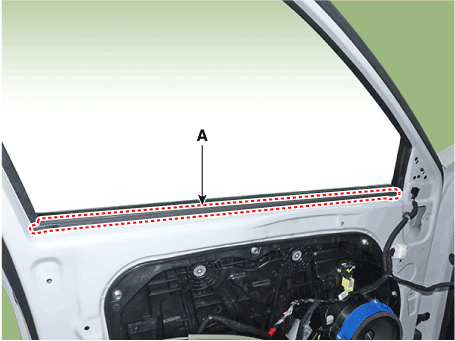

Remove the front door belt inside weatherstrip (A).

Hyundai Palisade. Repair procedures

3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
When installing, install it by first contacting the inside part.
Replace any damaged clips (or pin-type retainers).
