Hyundai Palisade (LX2): Front Door / Front Door Side Weatherstrip

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Side Weatherstrip

Repair procedures

Replacement
[Front door side weatherstrip]
1.
Loosen the front door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m,15.9 - 23.9 lb-ft)
2.

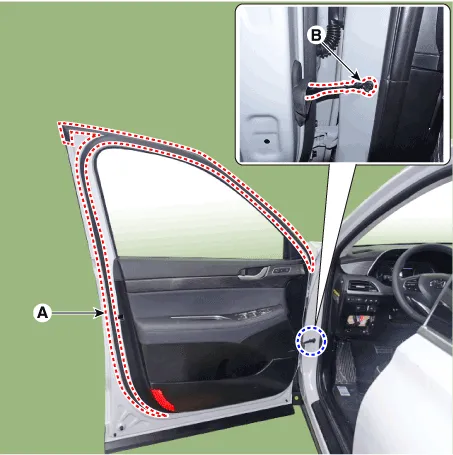

Detach the clips, then remove the front door side weatherstrip (A).

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Replace any damaged clips (or pin-type retainers).
[Front door body side weatherstrip]
4.

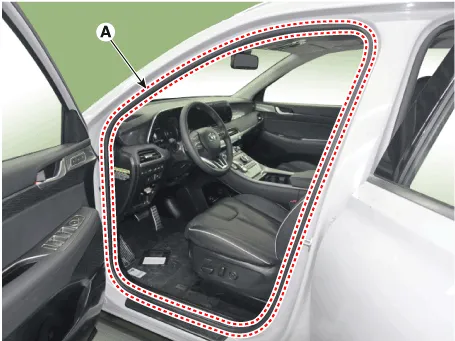

Detach the clips, then remove the front door body side weatherstrip (A).

Hyundai Palisade. Repair procedures
5.
To install, reverse removal procedure.
