Hyundai Palisade: Seat Warmers and Air
Ventilation Seats / Front air ventilation seat

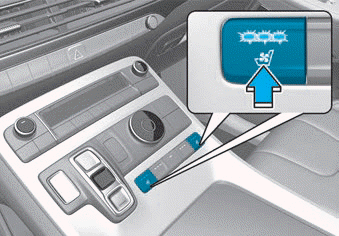

■ Front seat

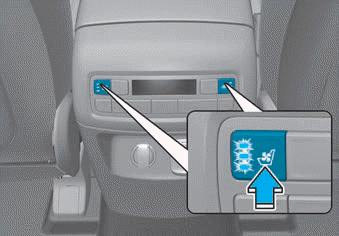

■ Rear seat (2nd row)
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the
switches in the OFF position.
While the engine is running, push the
switch to cool the driver's seat or the
front passenger's seat.
- Each time you push the switch,
the airflow changes as follows:
- When pressing the switch for
more than 1.5 seconds with the air
ventilation seat operating, the
i operation will turn OFF.
- The air ventilation seat defaults to
the OFF position whenever the
vehicle is turned on.
Information
- If the outside temperature is under
approximately 33°F (2°C), the air
ventilation seat may not operate.
- Use the air ventilation seat when the
climate control system is on. Using
the air ventilation seat for prolonged
periods of time with the climate control
system off could cause the climate
control seat performance to be
reduced.
NOTICE
To prevent damage to the air ventilation
seat:
- Use the air ventilation seat ONLY
when the climate control system
is on. Using the air ventilation
seat for prolonged periods of
time with the climate control
system off could cause the air
ventilation seat to malfunction.
- Never use a solvent such as
paint thinner, benzene, alcohol
or gasoline to clean the seats.
- Avoid spilling liquids on the surface
of the front seats and seatbacks;
this may cause the air
vent holes to become blocked
and not work properly.
- Do not place materials such as
plastic bags or newspapers
under the seats. They may block
the air intake causing the air
vents to not work properly.
- Do not change the seat covers. It
may damage the air ventilation
seat.
- If the air vents do not operate,
restart the vehicle. If there is no
change, have the vehicle
inspected by an authorized
HYUNDAI dealer.
Seat warmers (if equipped)
Seat warmers are provided to warm
the seats during cold weather.
WARNING
The seat warmers can cause a
SERIOUS BURN, even at low
temperatures and especially if
used for long periods of time...
