Hyundai Palisade: Rear Seats / Folding the rear seat

Hyundai Palisade (LX2) 2020-2024 Owner's Manual / Safety System of Your Vehicle / Seats / Rear Seats / Folding the rear seat

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

WARNING

  • Never allow passengers to sit on top of the folded down seatback while the vehicle is moving. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop.
  • Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.

To fold down the rear seatback:

1. Set the front seatback to the upright position and if necessary, slide the front seat forward.

2. Lower the rear head restraints to the lowest position.

Hyundai Palisade. Folding the rear seat

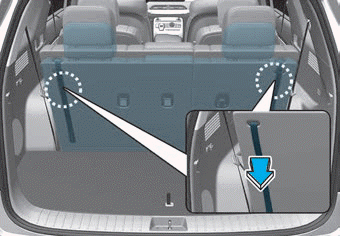

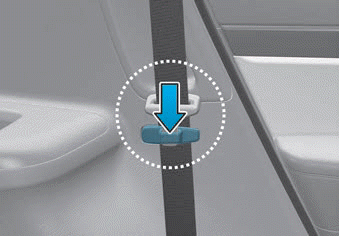

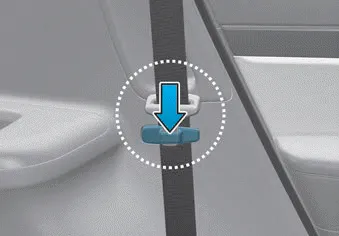

3. Locate the seatbelt webbing in the guide before folding down the seatback to avoid the seatbelt system interfering with the seatback.

Hyundai Palisade. Folding the rear seat

■ 2nd row seat

Hyundai Palisade. Folding the rear seat

■ 3rd row seat

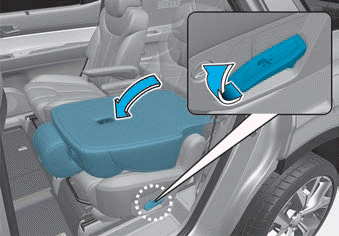

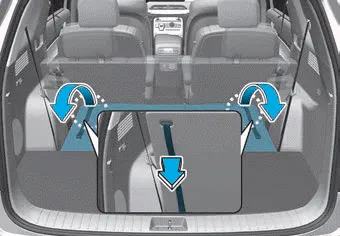

4. Pull up the seatback recline lever, then fold the seat toward the front of the vehicle.

Hyundai Palisade. Folding the rear seat

■ 2nd row seat

Hyundai Palisade. Folding the rear seat

■ 3rd row seat

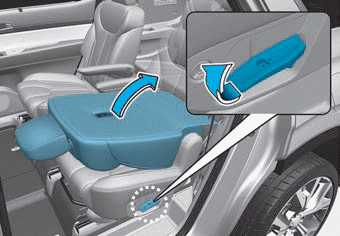

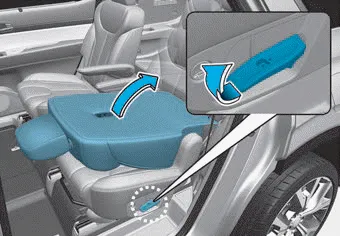

5. To use the rear seat, lift and unfold the seatback to the upright position by pulling up the recline lever. Push the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

6. Return the rear seat belt to the proper position.

WARNING

When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In an accident or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment, which could result in serious injury or death.

WARNING

Do not place objects in the rear seats, since they cannot be properly secured and may hit vehicle occupants in a collision causing serious injury or death.

WARNING

Make sure the vehicle is off, the shift button is in P (Park), and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift button is inadvertently shifted to another position.

CAUTION

  • Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
  • When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.
  • Unsecured cargo in the passenger compartment can cause damage to the vehicle or injury to it's occupants.

    Walk-in seat (2nd row seat)

    To get in or out of the 3rd row seat, 1. Routing the seat belt webbing through the rear seat belt guide clip. After inserting the seat belt, tighten the belt webbing by pulling it up...

    2nd row seat folding (from outside)

    Push the 2nd row seat back folding switch (1) located on the left side of the cargo area. (L : Left seatback folding, R : Right seatback folding) WARNING Rear seat folding Do not fold the rear seats(2nd & 3rd row seats), if passengers, pets or luggage are on the rear seats...
