Hyundai Palisade: ESP(Electronic Stability Program) System / Emergency Signal System
Description and operation
Introduction of quick brake warning system (ESS)
In case of quick brake by driver, the brake lamp or turn signal is blinked to
warn against the vehicle at rear.

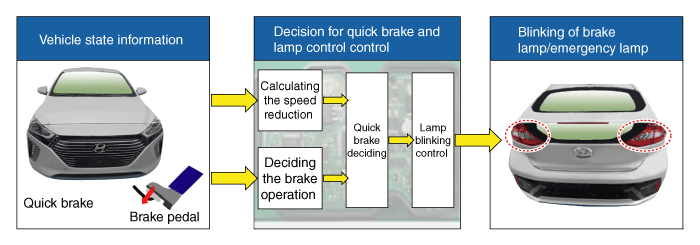

![Hyundai Palisade. Description and operation](images/emergency_signal_system-711/390/hyundai_palisade__description_and_operation_2512.gif)
1. |
Basic function (Blinking the brake lamp/emergency lamp)
– |
Operation condition : In case of quick brake or operation of
ABS above in a certain speed
|
– |
Releasing condition : In case of stopping the quick brake or
releasing the ABS operation
|
|
2. |
Additional function (Blinking the turn signal)
– |
Operation condition : In case of quick brake in low speed
|
– |
Releasing condition : Releasing at the start of driving
|

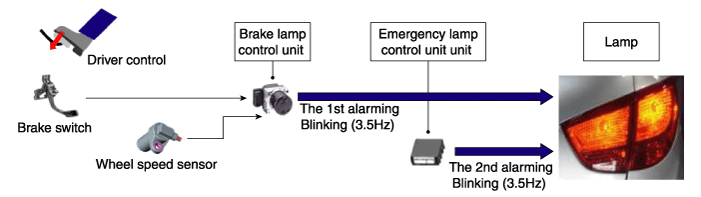

![Hyundai Palisade. Description and operation](images/emergency_signal_system-711/390/hyundai_palisade__description_and_operation_2513.gif)
|

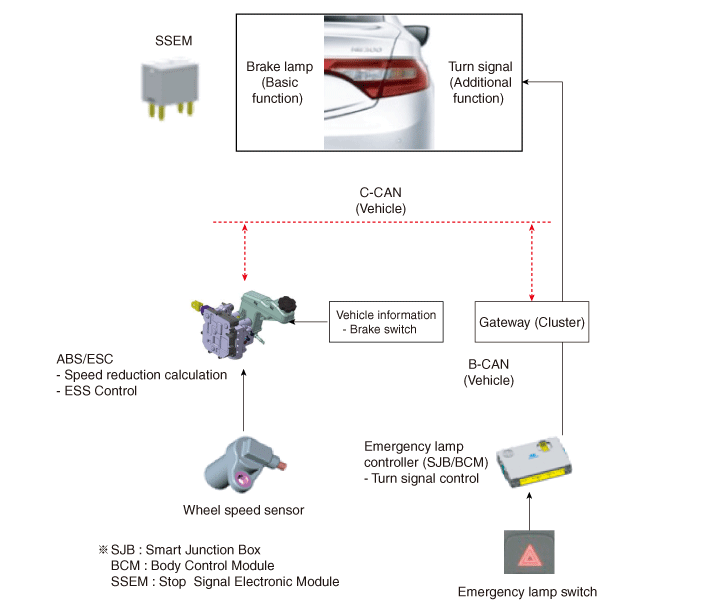

System configuration
![Hyundai Palisade. Description and operation](images/emergency_signal_system-711/390/hyundai_palisade__description_and_operation_2514.gif)

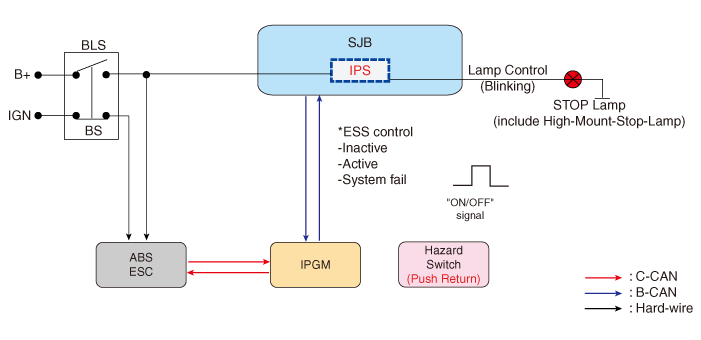

ESS Circuit diagram
![Hyundai Palisade. Description and operation](images/emergency_signal_system-711/390/hyundai_palisade__description_and_operation_2515.gif)
Components and components location
Components
[2WD]
1. Front wheel speed sensor
[4WD]
1...
Description and operation
Description
The yaw rate and G sensor is included inside the air bag control module (SRSCM).
When the vehicle is turning with respect to a vertical axis the yaw rate sensor
detects the yaw rate electroniclly by the vibration change of plate fork inside
the yaw rate sensor...
Other information:
Troubleshooting
Symptom
Probable cause
Remedy
Play in steering
Loose yoke plug
Retighten
Loose steering gear mounting bolts
Retighten
Loose or worn tie rod end
Retighten or replace as necessary
Steering wheel operation is not smooth (Insufficient power assist)
V-belt slippage
Readjust
Damaged V-belt
Replace
Low fluid level
Replenish
Air in the fluid
Bleed air
Twisted or damaged hoses
Correct the routing or replace
Insufficient oil pump pressure
Repair or replace the oil pump
Sticky flow control valve
Replace
Excessive internal oil pump leakage
Replace the damaged parts
Excessive oil leaks from rack and pinion in gear box
Replace the damaged parts
Distorted or damaged gear box or valve body seals
Replace
Steering wheel does not return properly
Excessive turning resistance of tie rod end
Replace
Yoke plug excessively tight
Adjust
Tie rod and/or ball joint cannot turn smoothly
Replace
Loose mounting of gear box mounting bracket Worn steering shaft joint and/or
Retighten
Worn steering shaft joint and / or body grommet
Correct or replace
Distorted rack
Replace
Damaged pinion bearing
Replace
Twisted or damaged hoses
Reposition or replace
Damaged oil pressure control valve
Replace
Damaged oil pump input shaft bearing
Replace
Noise
Hissing Noise in Steering Gear
There is some noise with all power steering systems...
Repair procedures
Replacement
1.
Pull down the front door window glass to the lowest level by pressing
the power window glass switch.
2.
Remove the front door quadrant cover (A).
3...
