Hyundai Palisade: Emergency Call System (Russia) / Emergency Call (eCall) Button

Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Emergency Call System (Russia) / Emergency Call (eCall) Button

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

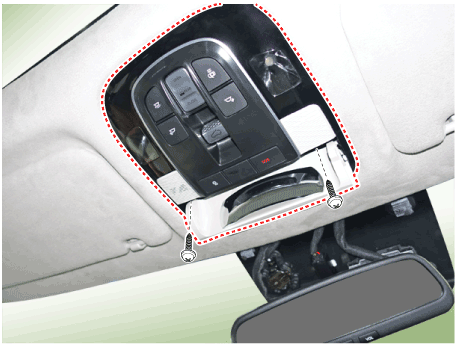

2.	Remove the mounting screws (2EA). And then remove the overhead console.

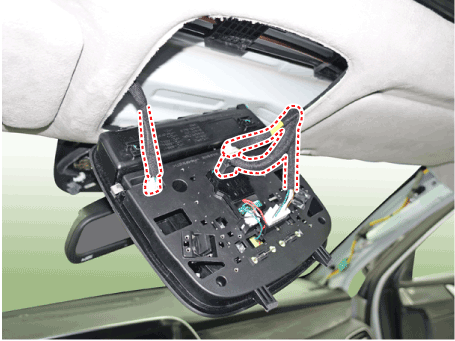

3.	Remove the overhead console after disconnect the connector.

Installation

1.	Install the overhead console lamp after connecting the connector.

2.	Install the lens after tightening 2 screws.

3.	Connect the negative (-) battery terminal.
