Hyundai Palisade: Hydraulic System / Electronic Oil Pump (EOP)

Hyundai Palisade (LX2) 2020-2025 Service Manual / Automatic Transaxle System (A8LF1) / Hydraulic System / Electronic Oil Pump (EOP)

Repair procedures

Removal

1.	Turn ignition switch OFF and disconnect the negative (-) battery cable.

2.	Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

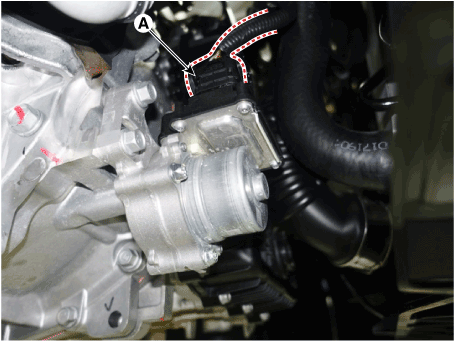

3.	Disconnect the EOP connector (A).

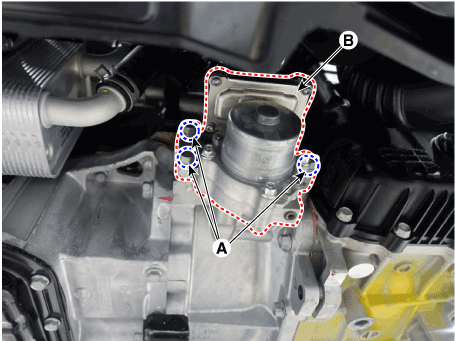

Remove the EOP (B) after removing the bolts (A).

Tightening torque :

20.6 - 26.5 N.m (2.1 - 2.7 kgf.m, 15.2 - 19.5 lb-ft)

Hyundai Palisade. Repair procedures

Installation

To install, reverse the removal procedure.

•	The existing o-rings must be replaced with a new one. (Do not reuse it.)

•	Apply ATF to new O-Ring before insert EOP to transaxle.

Check the ATF level after refilling the automatic transaxle with fluid.

(Refer to Automatic Transaxle System - "Automatic Transaxle Fluid(ATF)")

•	After the installation, start the engine and then check if there are any leakages from the EOP connection.
