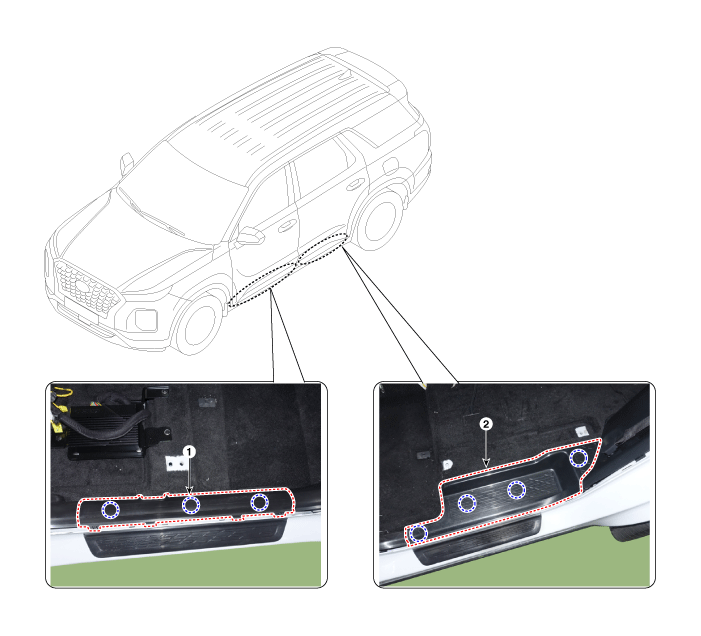

Component Location

Hyundai Palisade. Components and components location

1. Front door scuff trim
2. Rear door scuff trim

Repair procedures
Replacement
[Front door scuff trim]
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
Take care not to bend or scratch the trim and panels.
1.
Remove the front door body side weatherstrip.
2.

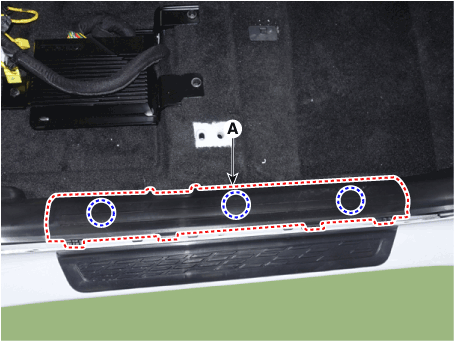

Using a flat-tip screwdriver or remover and remove the front door scuff trim (A).

Hyundai Palisade. Repair procedures

3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Replace any damaged clips (or pin-type retainers).
[Rear door scuff trim]
Hyundai Palisade. Repair procedures
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Hyundai Palisade. Repair procedures
Take care not to bend or scratch the trim and panels.
1.
Remove the rear door body side weatherstrip.
2.

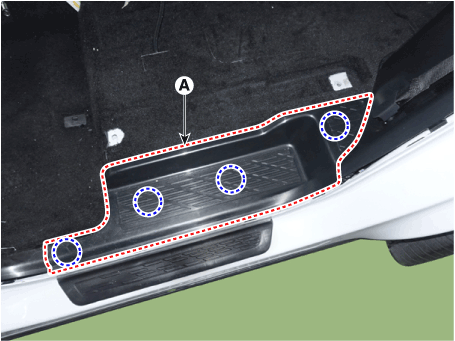

Using a flat-tip screwdriver or remover and remove the rear door scuff trim (A).

Hyundai Palisade. Repair procedures

3.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
Replace any damaged clips (or pin-type retainers).
