Hyundai Palisade: Rear Occupant Alert / Description and operation

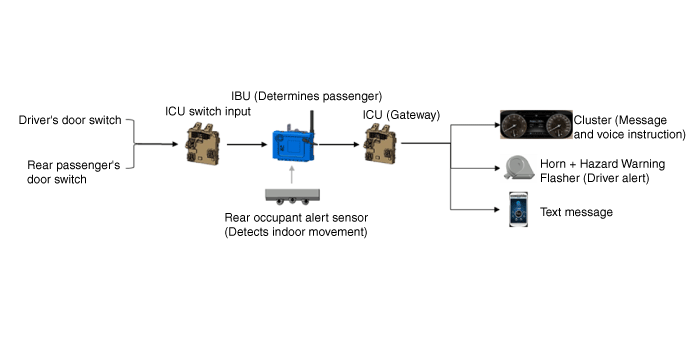

The system detects the passenger in the vehicle and prevents the driver from getting off the vehicle with the passenger in the back.

- 1st warning: If you open the driver's door after you open and then close the rear passenger and turn the engine off, the system provides warning by showing message on the cluster and giving voice instruction.

- 2nd warning

Components and components location

..

Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the cover (A) by using a flat-tip screwdriver...
