Hyundai Palisade: Driver Attention Warning (DAW) system / Resetting the System

Hyundai Palisade (LX2) 2020-2025 Owner's Manual / Driving Your Vehicle / Driver Attention Warning (DAW) system / Resetting the System

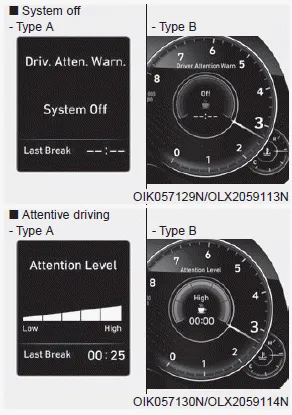

The last break time is set to 00:00 and the driver's attention level is set to 5 (very attentive) when the driver resets the Driver Attention Warning (DAW) system.
The Driver Attention Warning (DAW) system resets in the following situations.
- The engine is turned OFF.
- The driver unfastens the seat belt and then opens the driver's door.
- The vehicle is stopped for more than 10 minutes.
The Driver Attention Warning (DAW) system operates again, when the driver restarts driving.
