Hyundai Palisade: Mirror / Outside Rear View Mirror

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body (Interior and Exterior) / Mirror / Outside Rear View Mirror

Components and components location
Component Location

Hyundai Palisade. Components and components location

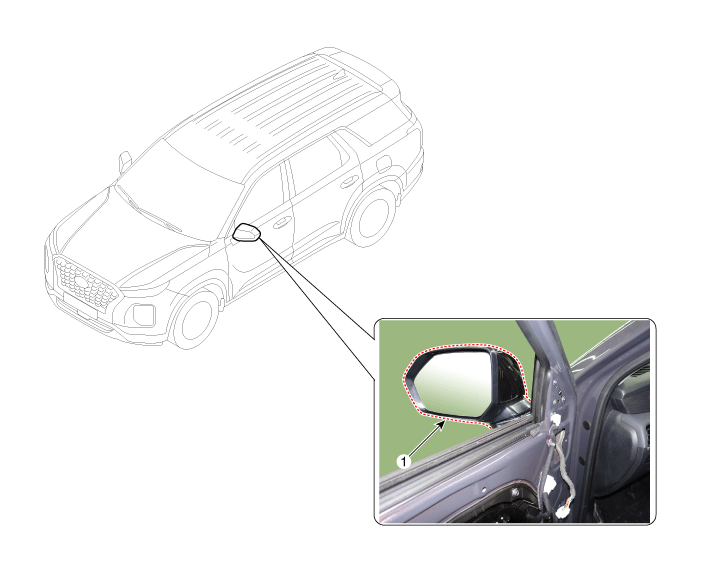

1. Outside rear view mirror


Repair procedures
Replacement
[Outside rear view mirror assembly]
Hyundai Palisade. Repair procedures
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the Front door trim.
(Refer to Front door - "Front Door Trim")
2.

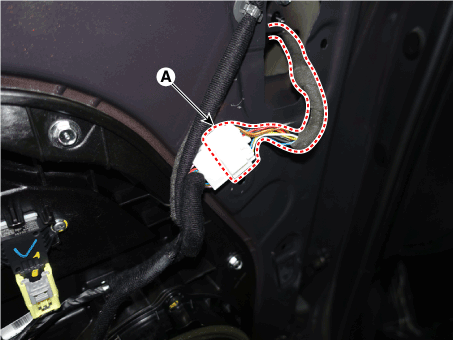

Press the lock pin and separate the outside mirror main connector (A).

Hyundai Palisade. Repair procedures
3.

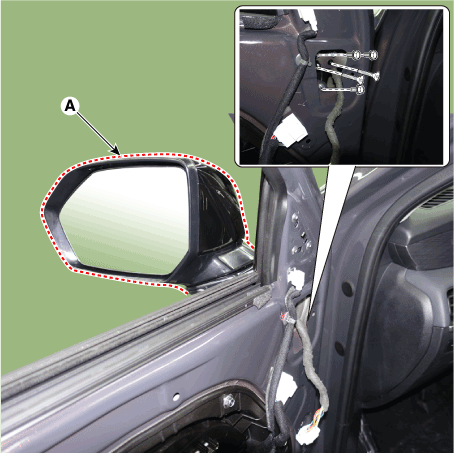

Loosen the mounting bolts ,screws and remove the outside rear view mirror (A).
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Hyundai Palisade. Repair procedures
4.
To install, reverse removal procedure.
Hyundai Palisade. Repair procedures
•
Make sure the connector is connected properly.
[Outside rear view mirror base pad]
1.
Remove the outside rear view mirror.
(Refer to Mirror - "Outside Rear View Mirror")
2.

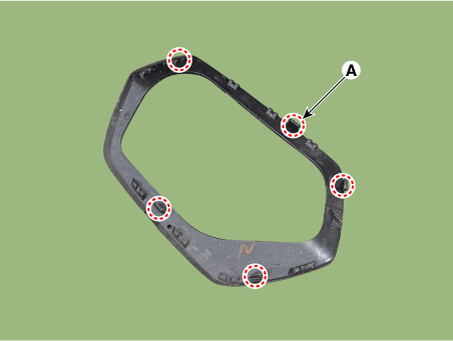

Remove the outside rear view mirror base pad (A).

Hyundai Palisade. Repair procedures

Hyundai Palisade. Repair procedures
•

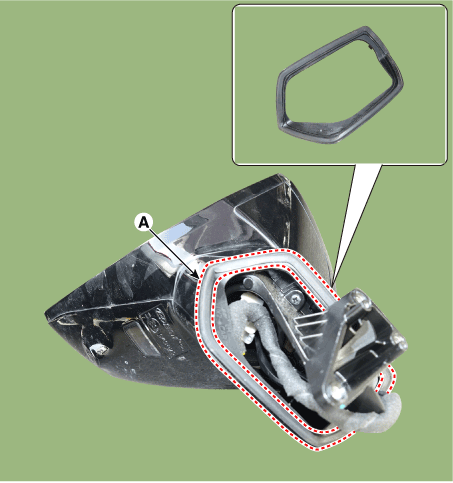

Be careful of hook (A) break when install the outside rear view mirror base pad.

Hyundai Palisade. Repair procedures
3.
To install, reverse removal procedure.
