Hyundai Palisade (LX2) 2020-2025 Service Manual / Body Electrical System / Lighting System / Components and components location

Component Location

Hyundai Palisade. Components and components location

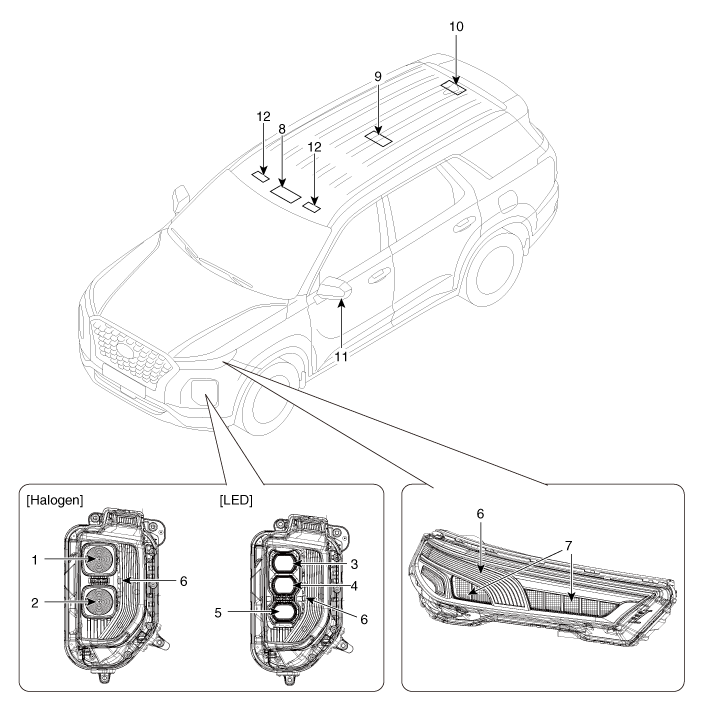

1. Head lamp (Low)
2. Head lamp (High)
3. Head lamp (Spread Low)
4. Head lamp (Hot spot Low)
5. Head lamp (Sub Low/High)
6. DRL / Position lamp
7. Turn signal lamp
8. Over head console lmap
9. Room lamp
10. Cago lamp
11. Door mirror turn signal lamp
12. Vanity lamp

Hyundai Palisade. Components and components location

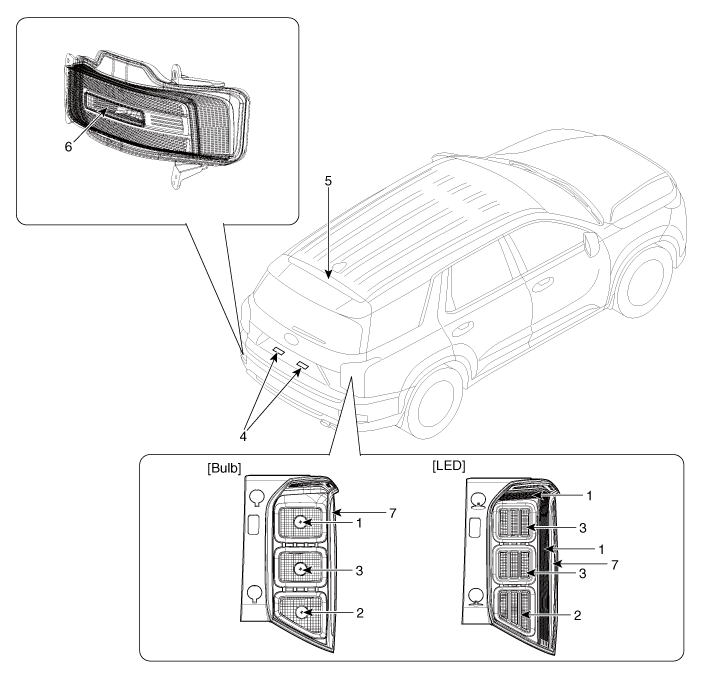

1. Tail lamp
2. Turn signal lamp
3. Bulb : Tail/Stop lamp, LED : Stop lamp
4. License plate lamp
5. High mounting stop lamp
6. Back up lamp
7. Side maker lamp

    Specifications

    ..

    Head Lamps

    Repair procedures Removal    Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off...
