Hyundai Palisade: Indicators And Gauges / Components and components location

Hyundai Palisade (LX2) 2020-2024 Service Manual / Body Electrical System / Indicators And Gauges / Components and components location

Components

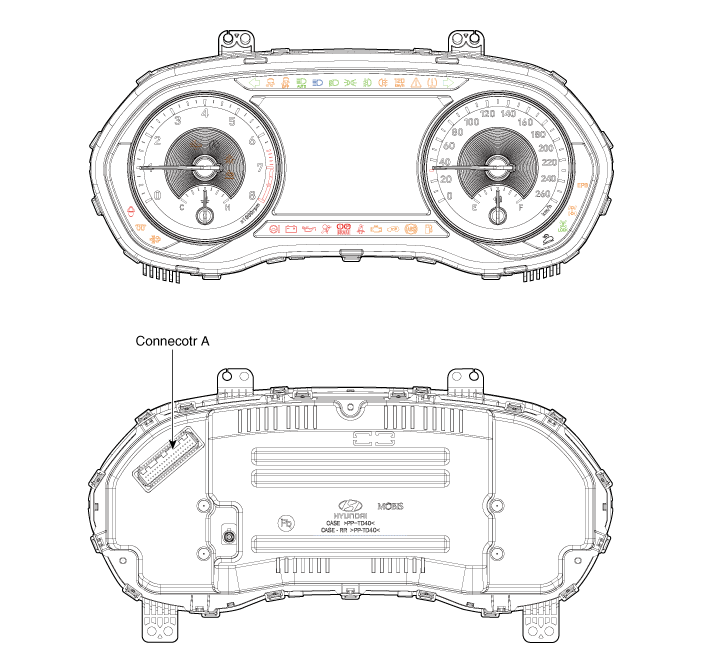

3.5 Inch MONO LCD

Hyundai Palisade. Components and components location

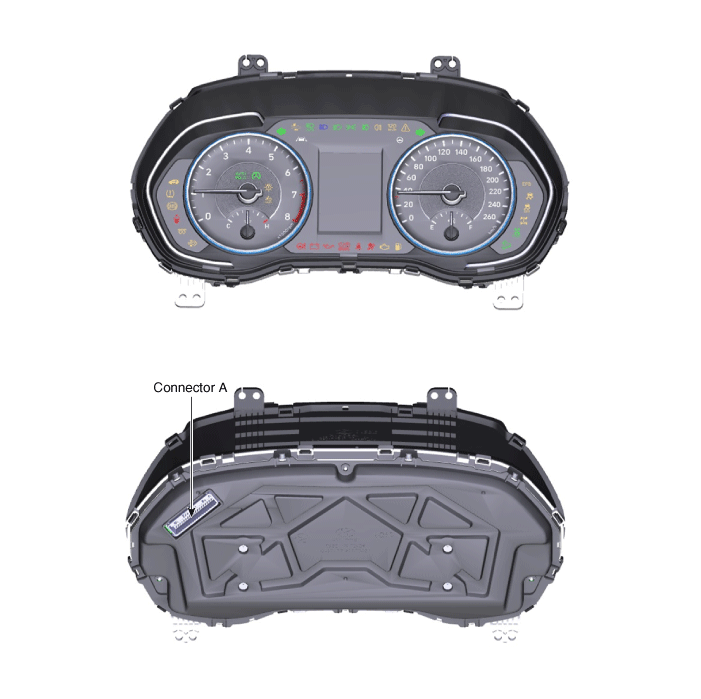

7 Inch TFT LCD

Hyundai Palisade. Components and components location

Connector Pin Information
No
Connector A
No
Connector B
1
Ground
21
Trip switch (-)
2
Illumination (-)
22
Trip switch 1 (+)
3
Rheostat switch (Down)_Input
23
Trip switch 2 (+)
4
Rheostat switch (Up)_Input
24
Active ECO_input switch/ R switch(M/T)_input
5
Dentent
25
Driver mode switch/ N switch(M/T)_input
6
-
26
Speaker1 (+)_Output
7
-
27
Speaker1 (-)_Output
8
-
28
-
9
-
29
B-CAN (Low)
10
-
30
B-CAN (High)
11
-
31
Engine Run State_Output
12
Vehicle speed_Output
32
C-CAN (High)
13
Alternator_Input
33
C-CAN (Low)
14
Fuel sender (+)_Input
34
Temperature_Input
15
-
35
-
16
Fuel sender (-)_Input
36
Steering wheel heater indicator
17
Water separate_Input
37
Ground
18
Airbag (+)_Input
38
-
19
Oil press switch (-)_Input
39
IGN 1
20
-
40
Battery (+)
