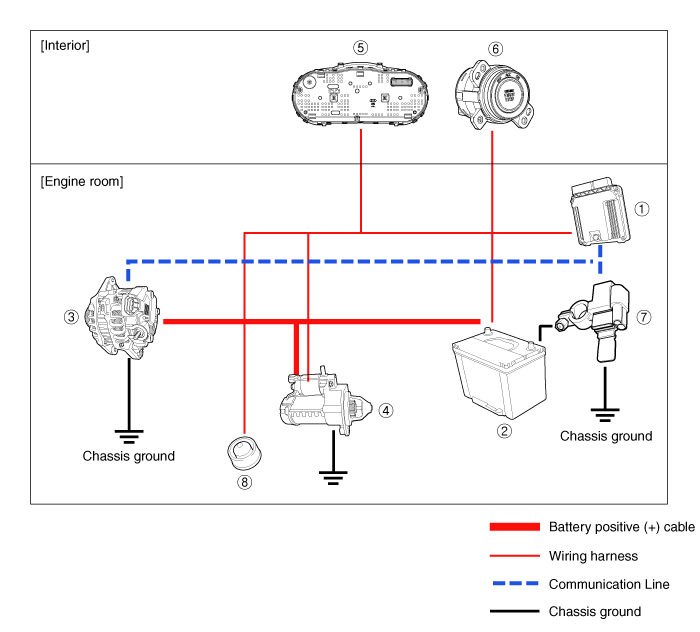

Hyundai Palisade: Charging System / Components and components location

① ECM

② Battery

③ Alternator

④ Starter

⑤ Instrument Cluster

⑥ Ignition switch or start/stop button

⑦ Battery sensor

⑧ Hood switch
