Hyundai Palisade: Surround View Monitor (SVM) / Components and components location

Hyundai Palisade (LX2) 2020-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Surround View Monitor (SVM) / Components and components location

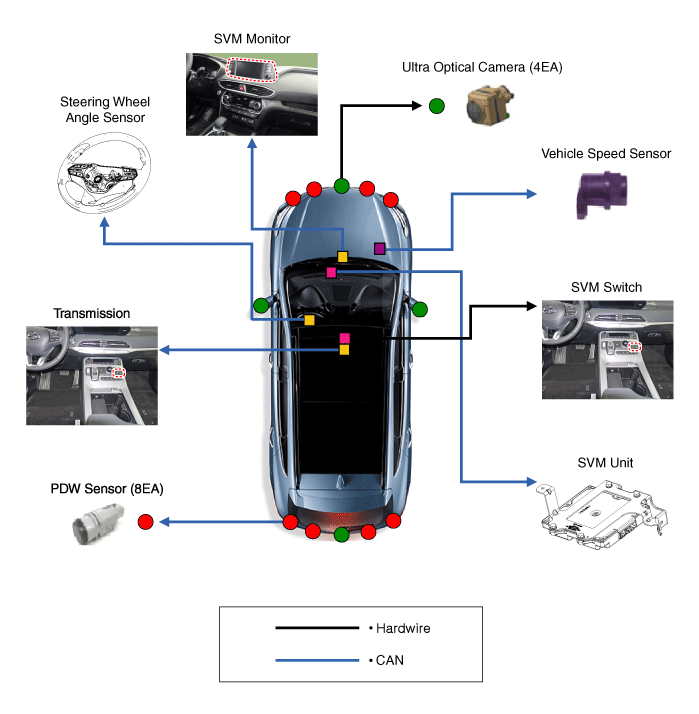

Components

Hyundai Palisade. Components and components location

    Surround View Monitor (SVM)

    ..

    Description and operation

    Description Surround View Monitor (SVM) is the system that allows video monitoring of 360 degrees around the vehicle. The system includes 4 ultra optical camera mounted around the vehicle (front, both sides, rear)...
