Hyundai Palisade: Parking Distance Warning (PDW) / Components and components location

Hyundai Palisade (LX2) 2020-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Components and components location

Component Location

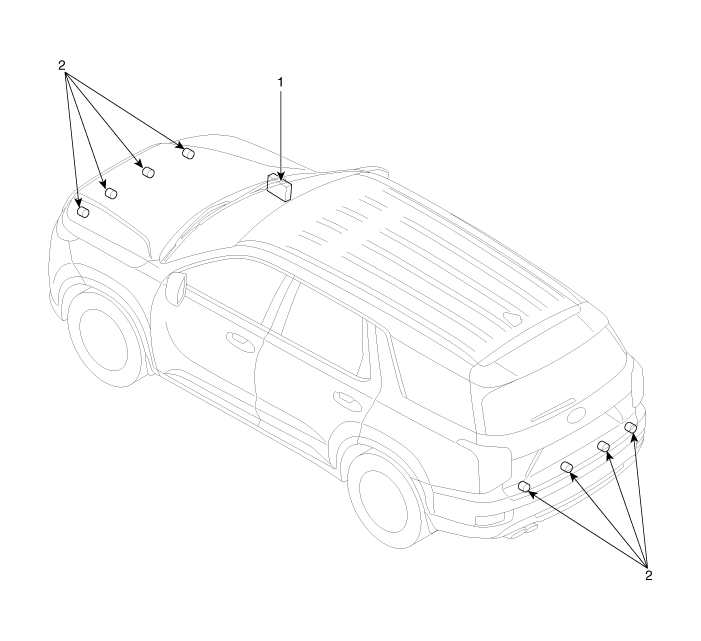

Hyundai Palisade. Components and components location

1. IBU (Integrated Body Control Unit)
2. Parking distance warning sensor

※ Parking Distance Warning function is built in IBU (Integrated Body Control Unit).

    Specifications

    ..

    Description and operation

    Description • PDW consists of 8 sensors (front : 4 units, rear : 4 units) that are used to detect obstacles and transmit the result in three separate warning levels, the first, second and third to IBU via LIN communication...
